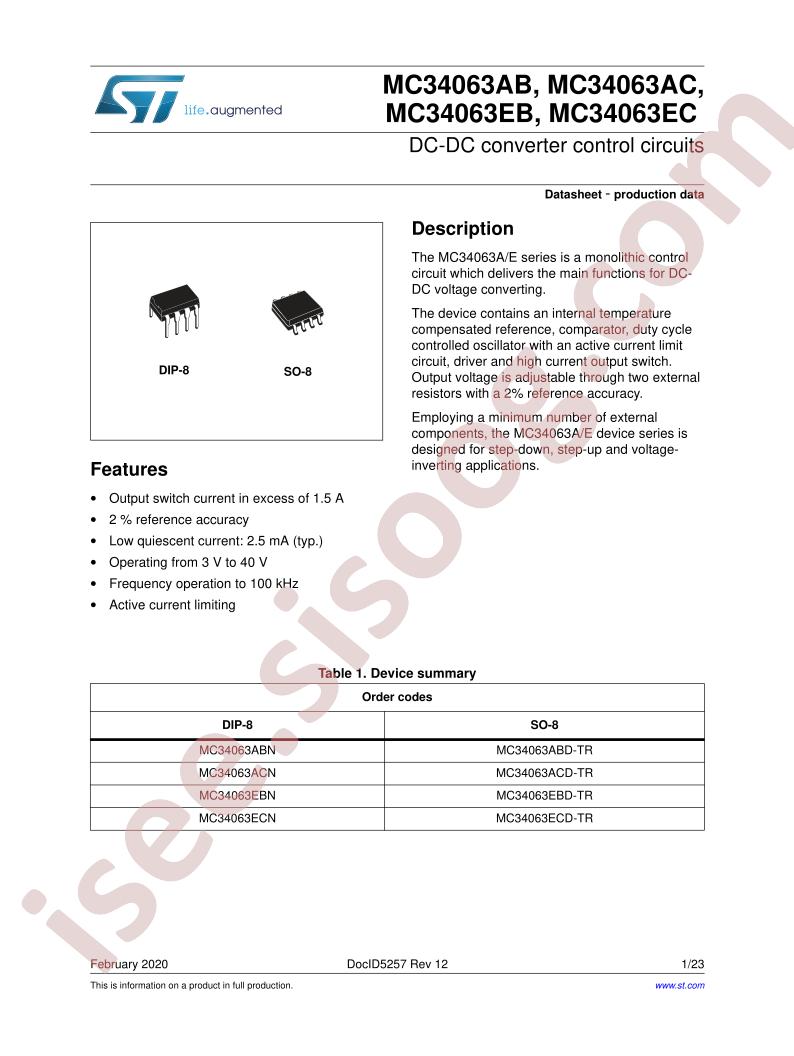

دیتاشیت MC34063ACD-TR
مشخصات دیتاشیت
| نام دیتاشیت |
MC34063xx
|
| حجم فایل |
964.506
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
23
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
Buck-boost type
-
Topology:
Step-down;Boost
-
Datasheet:
STMicroelectronics MC34063ACD-TR
-
Output Type:
Adjustable
-
Input Voltage:
3V~40V
-
Output Voltage:
1.25V~38V
-
Number of Outputs:
1
-
Switching Frequency:
100kHz
-
Output Current (Max):
1.5A
-
Operating Temperature:
0°C~+70°C@(TA)
-
Synchronous Rectification:
NO
-
Package:
SOP-8
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive or Negative
-
Voltage - Input (Min):
3V
-
Voltage - Input (Max):
40V
-
Voltage - Output (Min/Fixed):
1.25V
-
Voltage - Output (Max):
38V
-
Current - Output:
1.5A (Switch)
-
Frequency - Switching:
33kHz
-
Synchronous Rectifier:
No
-
Mounting Type:
Surface Mount
-
Package / Case:
8-SOIC (0.154", 3.90mm Width)
-
Supplier Device Package:
8-SO
-
Base Part Number:
MC3406
-
detail:
Buck, Boost Switching Regulator IC Positive or Negative Adjustable 1.25V 1 Output 1.5A (Switch) 8-SOIC (0.154", 3.90mm Width)
