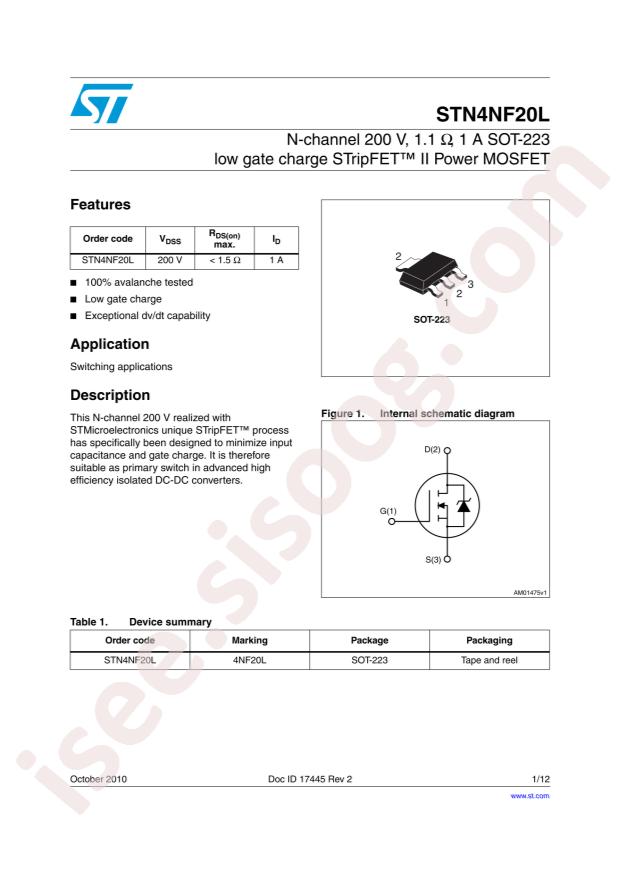

دیتاشیت STN4NF20L
مشخصات دیتاشیت
| نام دیتاشیت |
STx4NF20L
|
| حجم فایل |
618.28
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
12
|
مشخصات
-
RoHS:
true
-
Type:
N Channel
-
Category:
Triode/MOS Tube/Transistor/MOSFETs
-
Datasheet:
STMicroelectronics STN4NF20L
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Power Dissipation (Pd):
3.3W
-
Total Gate Charge (Qg@Vgs):
0.9nC@10V
-
Drain Source Voltage (Vdss):
200V
-
Input Capacitance (Ciss@Vds):
150pF@25V
-
Continuous Drain Current (Id):
1A
-
Gate Threshold Voltage (Vgs(th)@Id):
3V@250uA
-
Drain Source On Resistance (RDS(on)@Vgs,Id):
1.5Ω@10V,500mA
-
Package:
SOT-223
-
Manufacturer:
STMicroelectronics
-
Series:
STripFET™ II
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
FET Type:
N-Channel
-
Technology:
MOSFET (Metal Oxide)
-
Drain to Source Voltage (Vdss):
200V
-
Current - Continuous Drain (Id) @ 25°C:
1A (Tc)
-
Drive Voltage (Max Rds On, Min Rds On):
5V, 10V
-
Rds On (Max) @ Id, Vgs:
1.5Ohm @ 500mA, 10V
-
Vgs(th) (Max) @ Id:
3V @ 250µA
-
Gate Charge (Qg) (Max) @ Vgs:
0.9nC @ 10V
-
Vgs (Max):
±20V
-
Input Capacitance (Ciss) (Max) @ Vds:
150pF @ 25V
-
FET Feature:
-
-
Power Dissipation (Max):
3.3W (Tc)
-
Mounting Type:
Surface Mount
-
Supplier Device Package:
SOT-223
-
Package / Case:
TO-261-4, TO-261AA
-
Base Part Number:
STN4N
-
detail:
N-Channel 200V 1A (Tc) 3.3W (Tc) Surface Mount SOT-223
