دیتاشیت ECMF02-2HSMX6

ECMF02-2HSMX6

مشخصات دیتاشیت

نام دیتاشیت ECMF02-2HSMX6
حجم فایل 905.381 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت ECMF02-2HSMX6

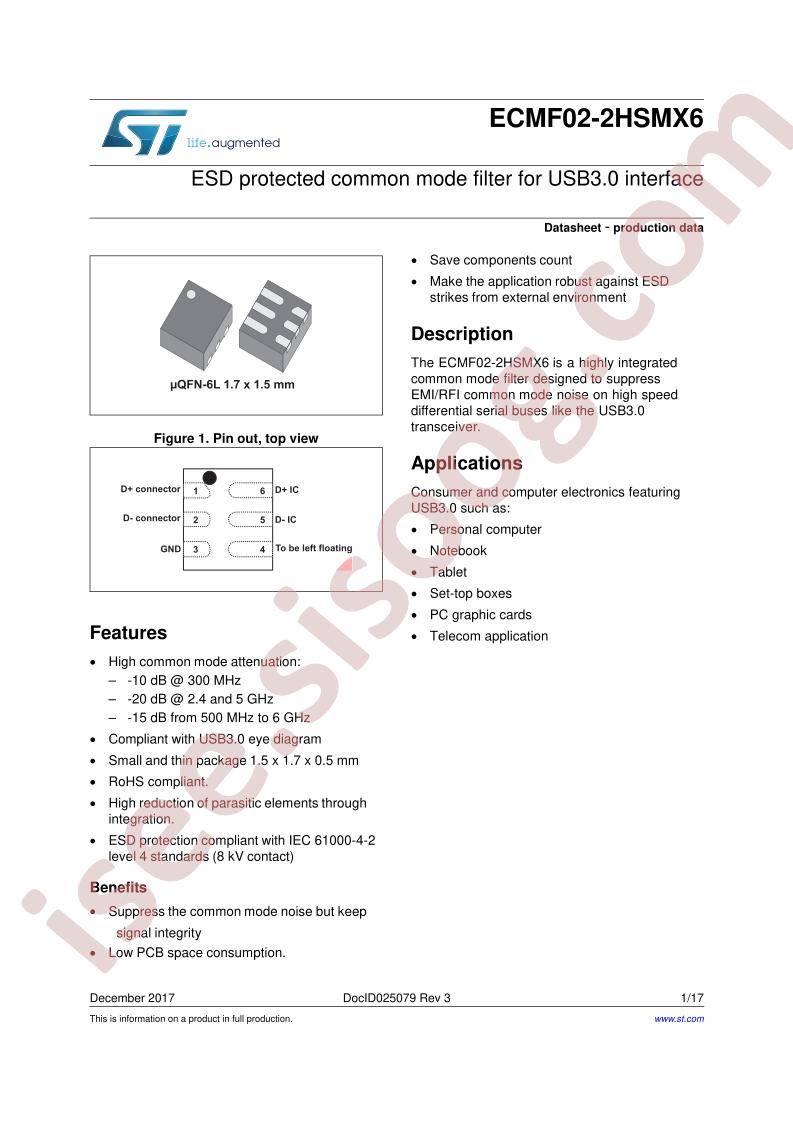

ECMF02-2HSMX6 Datasheet

مشخصات

  • RoHS: true
  • Category: Bead/Filter/EMI Optimization/Common Mode Filters
  • Datasheet: STMicroelectronics ECMF02-2HSMX6
  • Current Rating: 100mA
  • Number of Lines: 2
  • DC Resistance (DCR): 9Ω
  • Operating Temperature: -40°C~+85°C
  • Package: UFQFN-6
  • Manufacturer: STMicroelectronics
  • Series: ECMF
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Filter Type: Signal Line
  • Current Rating (Max): 100mA
  • DC Resistance (DCR) (Max): 9Ohm
  • Voltage Rating - DC: -
  • Voltage Rating - AC: -
  • Ratings: -
  • Approval Agency: -
  • Features: ESD
  • Mounting Type: Surface Mount
  • Size / Dimension: 0.063" L x 0.053" W (1.60mm x 1.35mm)
  • Height (Max): 0.022" (0.55mm)
  • Package / Case: 6-UFQFN
  • Base Part Number: ECMF02
  • detail: 2 Line Common Mode Choke Surface Mount 100mA DCR 9Ohm
