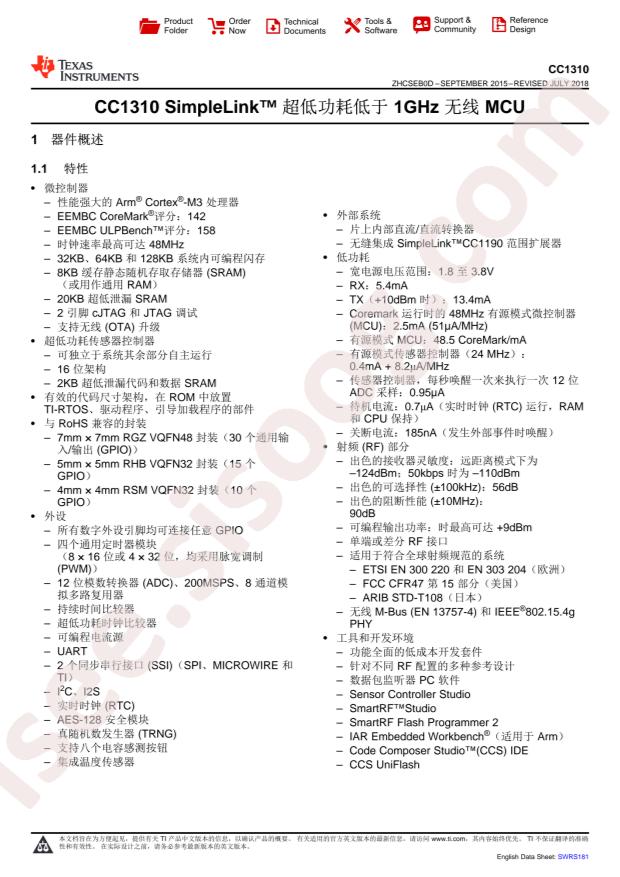

- دیتاشیت CC1310F128RGZT
دیتاشیت CC1310F128RGZT
مشخصات دیتاشیت
| نام دیتاشیت | CC1310F128RGZT |
|---|---|
| حجم فایل | 94.341 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 70 |
CC1310F128RGZT |
دانلود دیتاشیت |
|---|
سایر مستندات
CC13x0, 26x0 Technical Reference Manual 1743 pages
CC1310 Datasheet 68 pages
CC13xx, 26xx Software Developer's Guide 27 pages
CC1310 Errata 14 pages
مشخصات فنی
- RoHS: true
- Category: Radio Frequency Chip/Antenna/RF Transceiver ICs
- Data Rate: 50Kbps
- Datasheet: Texas Instruments CC1310F128RGZT
- Interface: I2C,I2S,JTAG,SPI,UART
- Applications: General-purpose ISM<1GHz
- Frequency Range: 300MHz~930MHz
- Receive Current: 5.5mA
- Operating Voltage: 1.8V~3.8V
- Operating Temperature: -40°C~+85°C
- Current Of Transmitting: 12.9mA
- Package: QFN-48-EP(7x7)
- Manufacturer: Texas Instruments
- GPIO: 30
- Mounting Type: Surface Mount
- Current - Transmitting: 12.9mA ~ 22.6mA
- Packaging: Cut Tape (CT)
- Type: TxRx + MCU
- Sensitivity: -124dBm
- Base Part Number: CC1310
- Voltage - Supply: 1.8V ~ 3.8V
- Memory Size: 128kB Flash, 20kB RAM
- Protocol: -
- Supplier Device Package: 48-VQFN (7x7)
- Part Status: Active
- Current - Receiving: 5.5mA
- Modulation: DSSS, GFSK
- Package / Case: 48-VFQFN Exposed Pad
- Serial Interfaces: I²C, I²S, JTAG, SPI, UART
- Power - Output: 14dBm
- Frequency: 300MHz ~ 930MHz
- Data Rate (Max): 50kbps
- Series: SimpleLink™
- RF Family/Standard: General ISM < 1GHz
- detail: IC RF TxRx + MCU General ISM < 1GHz 300MHz ~ 930MHz 48-VFQFN Exposed Pad
