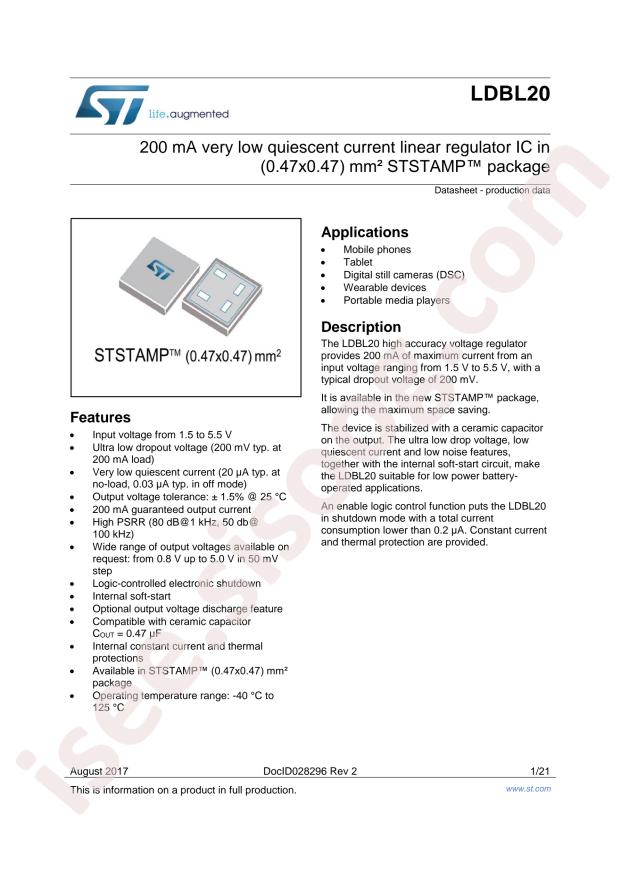

دیتاشیت LDBL20D-25R
مشخصات دیتاشیت
| نام دیتاشیت |
LDBL20
|
| حجم فایل |
1581.19
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
21
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics LDBL20D-25R
-
Output Current:
200mA
-
Output Voltage:
2.5V
-
Output Polarity:
positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
5.5V
-
Operating Temperature:
-40°C~+125°C@(Tj)
-
Quiescent Current (Ground Current):
40uA
-
Package:
STSTAMP-4
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Output Type:
Fixed
-
Number of Regulators:
1
-
Voltage - Input (Max):
5.5V
-
Voltage - Output (Min/Fixed):
2.5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
-
-
Current - Output:
200mA
-
Current - Quiescent (Iq):
40µA
-
PSRR:
80dB ~ 55dB (1kHz ~ 100kHz)
-
Control Features:
Enable
-
Protection Features:
Over Current, Over Temperature, Soft Start
-
Mounting Type:
Surface Mount
-
Package / Case:
4-STSTAMP™
-
Supplier Device Package:
4-STSTAMP™
-
Base Part Number:
LDBL20
-
detail:
Linear Voltage Regulator IC 1 Output 200mA 4-STSTAMP™
