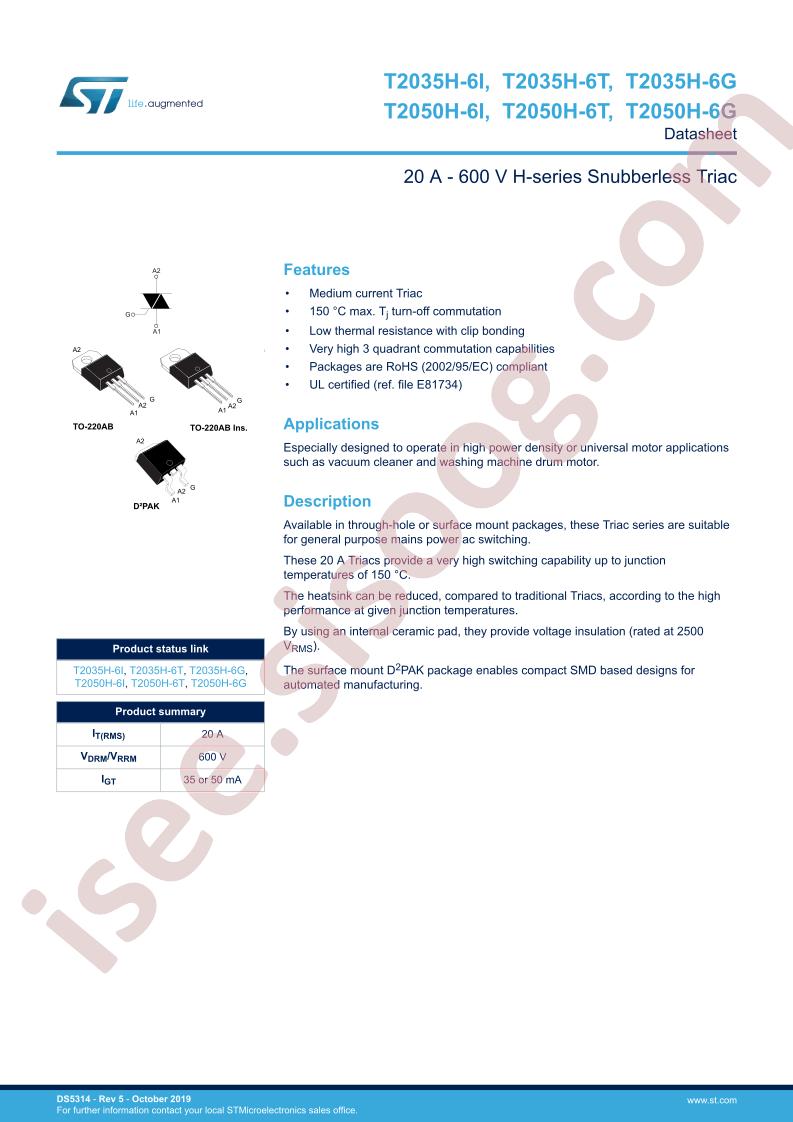

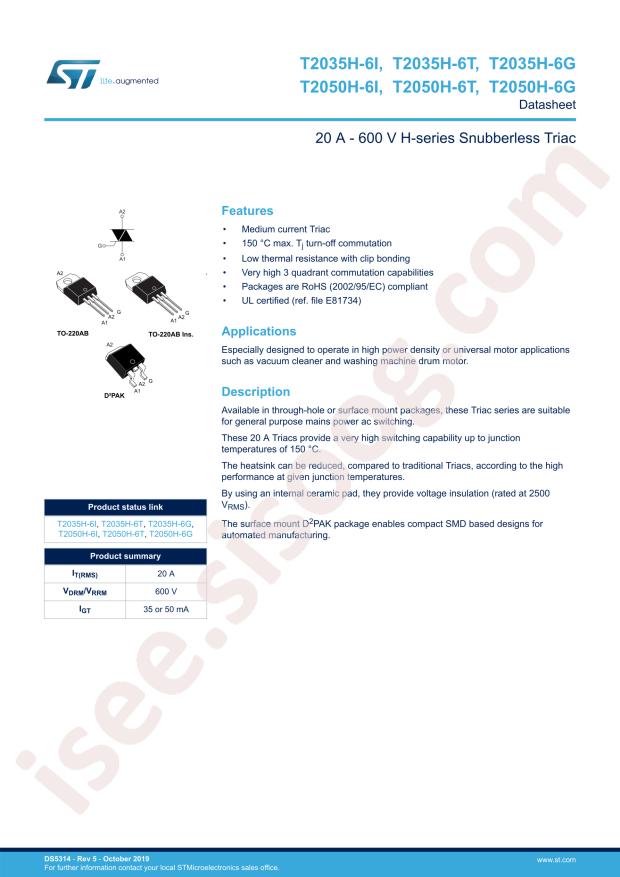

T2035H-6I 数据手册
其他文档
T20(35,50)H 13 pages
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/TRIACs
- SCR Type: 1个双向可控硅
- Datasheet: STMicroelectronics T2035H-6I
- Holding Current (Ih): 35mA
- Operating Temperature: -40°C~+150°C@(Tj)
- Gate Trigger Current(Igt): 35mA
- Gate Trigger Voltage (Vgt): 1V
- RMS On-State Current(It (rms)): 20A
- Peak Repetitive Off?State Voltage (Vdrm): 600V
- Package: TO-220
- Manufacturer: STMicroelectronics
- Series: Snubberless™
- Packaging: Tube
- Part Status: Active
- Triac Type: Alternistor - Snubberless
- Voltage - Off State: 600V
- Current - On State (It (RMS)) (Max): 20A
- Voltage - Gate Trigger (Vgt) (Max): 1V
- Current - Non Rep. Surge 50, 60Hz (Itsm): 200A, 210A
- Current - Gate Trigger (Igt) (Max): 35mA
- Current - Hold (Ih) (Max): 35mA
- Configuration: Single
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220AB Full-Pak
- Base Part Number: T2035
- detail: TRIAC Alternistor - Snubberless 600V 20A Through Hole TO-220AB Full-Pak
