LM2596T-ADJ/NOPB 数据手册
其他文档
LM2596 46 pages
技术规格
- RoHS: true
- Category: Power Supply Chip/DC-DC Converters
- Function: Step-down type
- Topology: Step-down

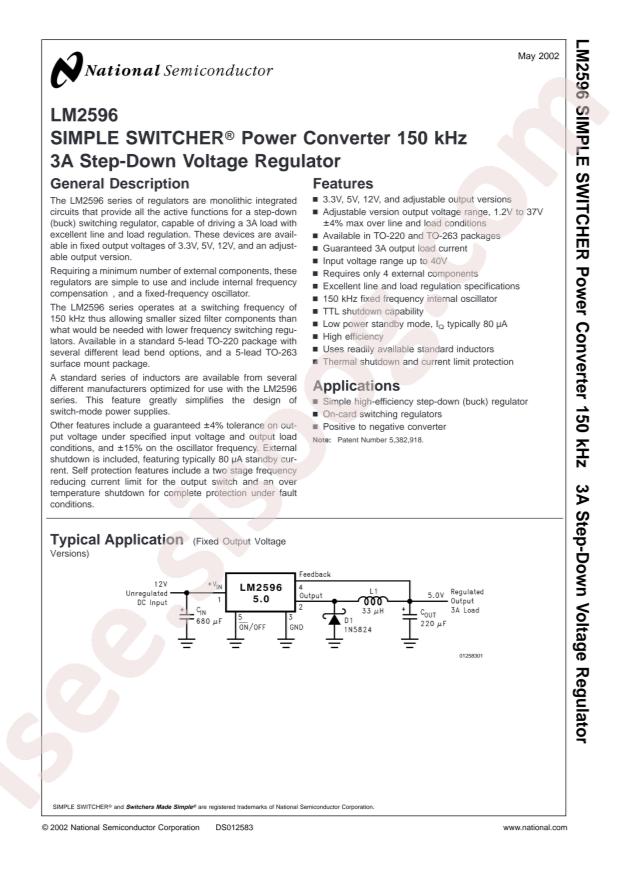

- Datasheet: Texas Instruments LM2596T-ADJ/NOPB
- Output Type: Adjustable
- Input Voltage: 4.5V~40V
- Output Voltage: 1.2V~37V
- Number of Outputs: 1
- Switching Frequency: 150kHz
- Output Current (Max): 3A
- Operating Temperature: -40°C~+125°C@(TJ)
- Synchronous Rectification: NO
- Package: TO-220-5
- Manufacturer: Texas Instruments
- Current - Output: 3A
- Voltage - Input (Max): 40V
- Frequency - Switching: 150kHz
- Part Status: Not For New Designs
- Base Part Number: LM2596
- Voltage - Output (Min/Fixed): 1.2V
- Package / Case: TO-220-5 Formed Leads
- Series: SIMPLE SWITCHER®
- Packaging: Tube
- Synchronous Rectifier: No
- Output Configuration: Positive
- Voltage - Output (Max): 37V
- Mounting Type: Through Hole
- Supplier Device Package: TO-220-5
- Voltage - Input (Min): 4.5V
- detail: Buck Switching Regulator IC Positive Adjustable 1.2V 1 Output 3A TO-220-5 Formed Leads
