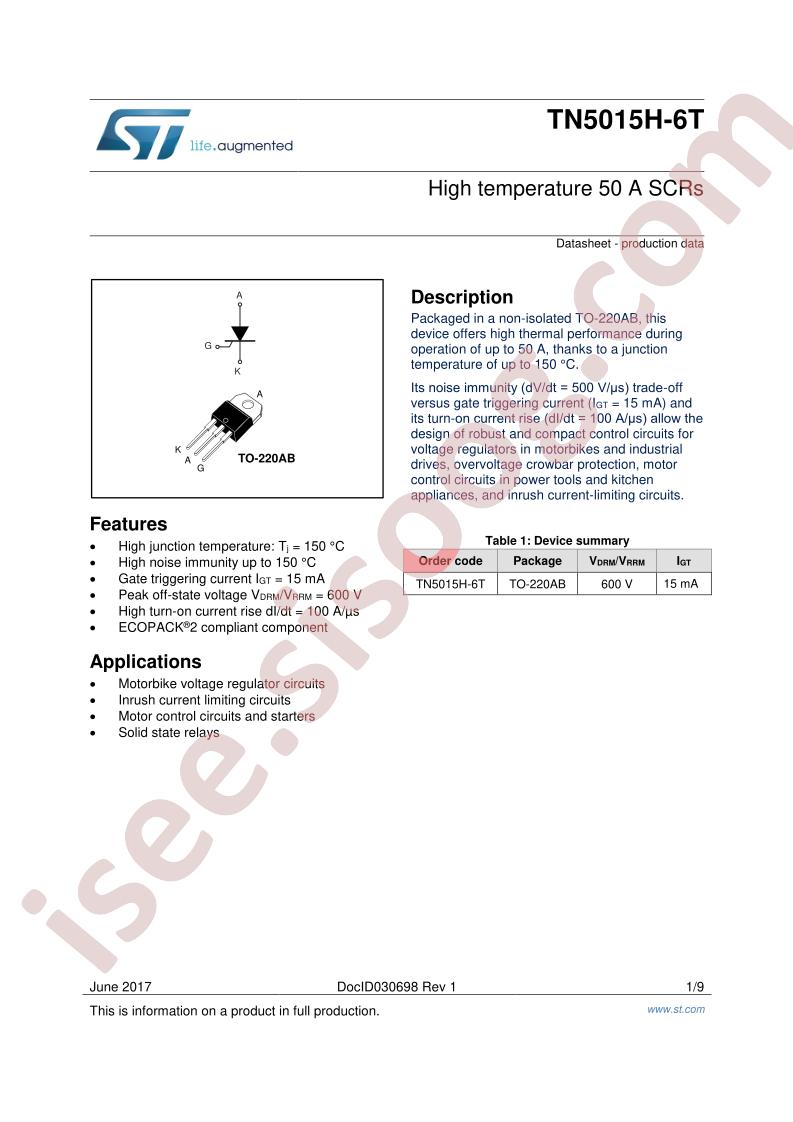

دیتاشیت TN5015H-6T
مشخصات دیتاشیت
| نام دیتاشیت | TN5015H6T Datasheet |
|---|---|
| حجم فایل | 408.626 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 9 |
دانلود دیتاشیت TN5015H6T Datasheet |
TN5015H6T Datasheet Datasheet |
|---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Voltage - Off State: 600V
- Voltage - Gate Trigger (Vgt) (Max): 1.3V
- Current - Gate Trigger (Igt) (Max): 15mA
- Voltage - On State (Vtm) (Max): 1.65V
- Current - On State (It (AV)) (Max): 30A
- Current - On State (It (RMS)) (Max): 50A
- Current - Hold (Ih) (Max): 60mA
- Current - Off State (Max): 10µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 493A, 450A
- SCR Type: Standard Recovery
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3 Full Pack
- Supplier Device Package: TO-220AB Insulated
- Base Part Number: TN5015
- detail: SCR 600V 50A Standard Recovery Through Hole TO-220AB Insulated
