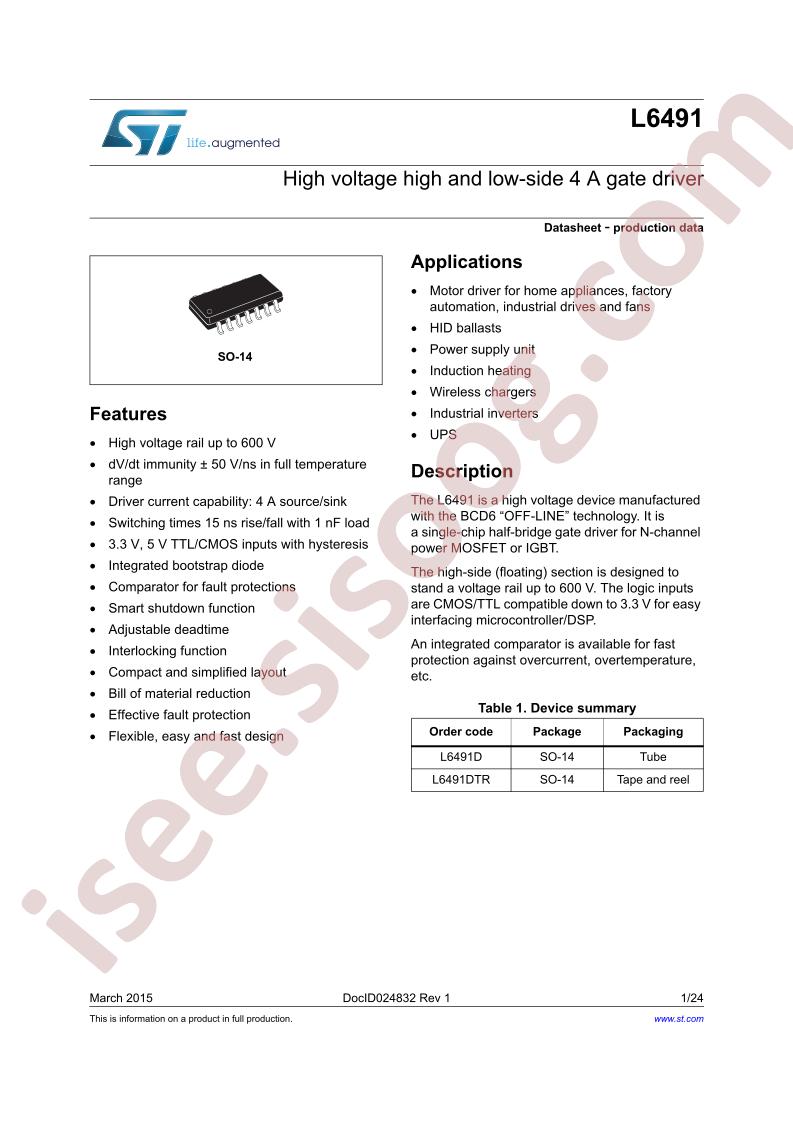

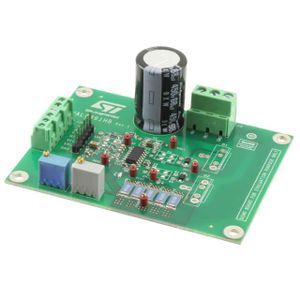

نام دیتاشیت L6491 Datasheet
حجم فایل 858.808 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

مشاهده دیتاشیت L6491 Datasheet

دانلود دیتاشیت

سایر مستندات

L6491D 24 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: STMicroelectronics L6491D
  • Fall Time: 15ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 15ns
  • Supply Voltage: 10V~20V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 4A
  • Peak Output Current(source): 4A
  • Package: SOP-14
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 10V ~ 20V
  • Logic Voltage - VIL, VIH: 1.45V, 2V
  • Current - Peak Output (Source, Sink): 4A, 4A
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 600V
  • Rise / Fall Time (Typ): 15ns, 15ns
  • Mounting Type: Surface Mount
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 14-SO
  • Base Part Number: L6491
  • detail: Half-Bridge Gate Driver IC Non-Inverting 14-SO
