L6491D دیتاشیت

L6491D

مشخصات دیتاشیت

نام دیتاشیت L6491D
حجم فایل 60.699 کیلوبایت
نوع فایل pdf
تعداد صفحات 24

مشاهده دیتاشیت L6491D

دانلود دیتاشیت

سایر مستندات

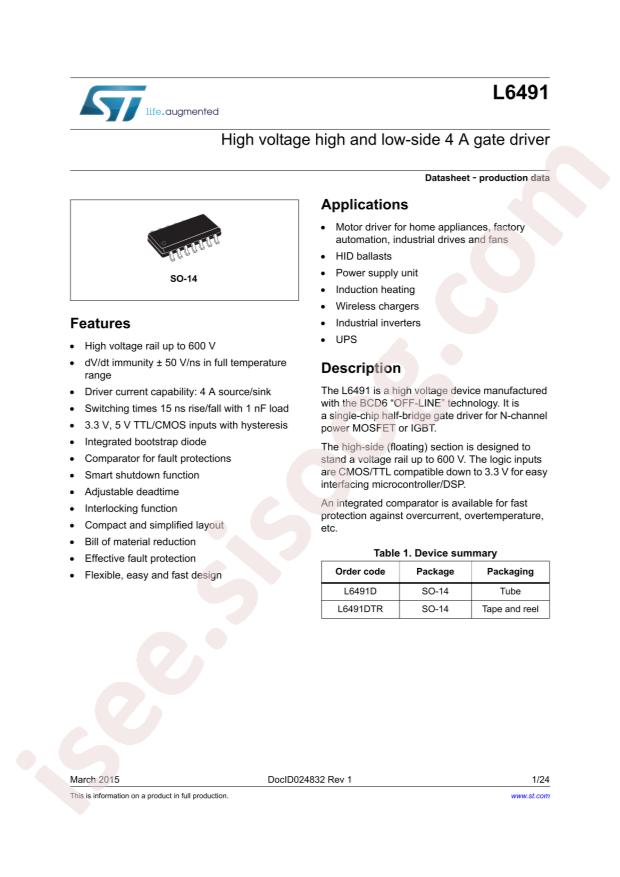

L6491 Datasheet 24 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: STMicroelectronics L6491D
  • Fall Time: 15ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 15ns
  • Supply Voltage: 10V~20V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 4A
  • Peak Output Current(source): 4A
  • Package: SOP-14
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Channel Type: Independent
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 10V ~ 20V
  • Logic Voltage - VIL, VIH: 1.45V, 2V
  • Current - Peak Output (Source, Sink): 4A, 4A
  • Input Type: Non-Inverting
  • High Side Voltage - Max (Bootstrap): 600V
  • Rise / Fall Time (Typ): 15ns, 15ns
  • Mounting Type: Surface Mount
  • Package / Case: 14-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 14-SO
  • Base Part Number: L6491
  • detail: Half-Bridge Gate Driver IC Non-Inverting 14-SO
