دیتاشیت ESDCAN06-2BWY

ESDCAN0x-2BWY

مشخصات دیتاشیت

نام دیتاشیت ESDCAN0x-2BWY
حجم فایل 1008.86 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

دانلود دیتاشیت ESDCAN0x-2BWY

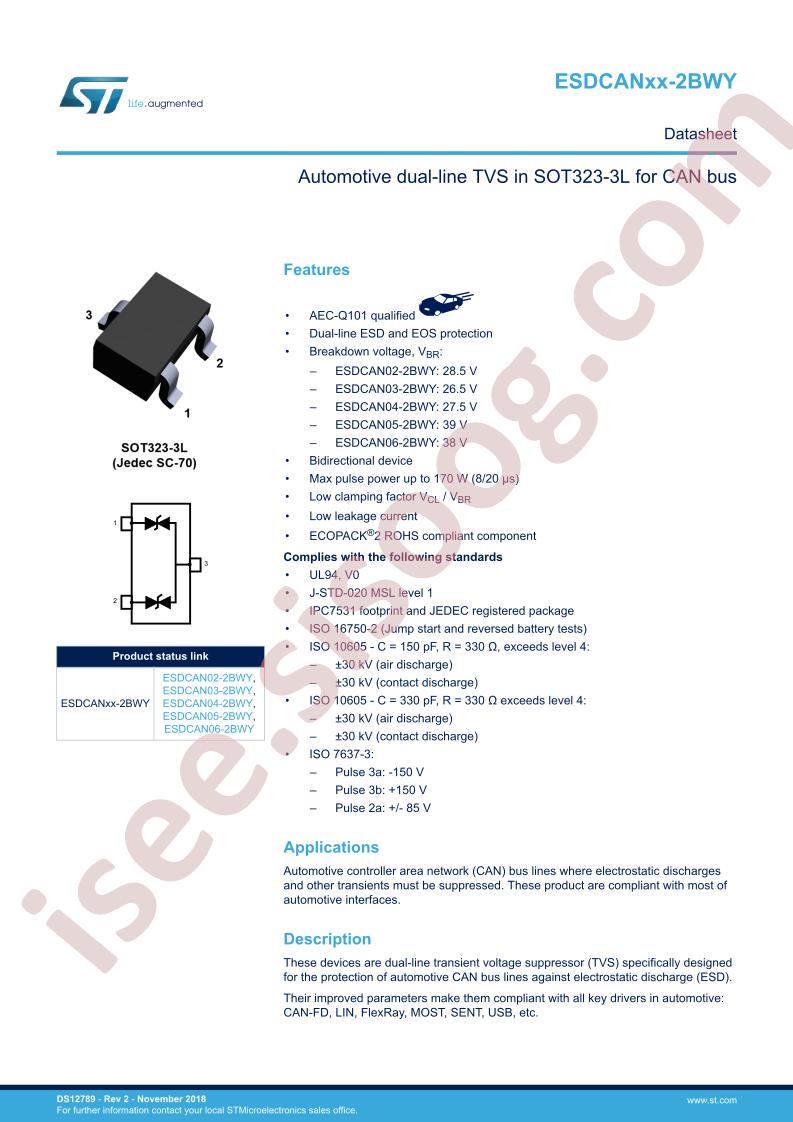

ESDCAN0x-2BWY Datasheet

مشخصات

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/ESD Protection Devices
  • Datasheet: STMicroelectronics ESDCAN06-2BWY
  • Clamping Voltage@Ipp: 59V
  • Operating Temperature: -55°C~+175°C@(Tj)
  • Breakdown Voltage (VBR): 38V
  • Peak Pulse Power(Ppp)@8/20us: 170W
  • Junction Capacitance(Cj)@1MHz: -
  • Peak Pulse Current(Ipp)@8/20us: 3A@(8/20us)
  • Reverse Stand-Off Voltage (Vrwm): 35V
  • Package: SOT-323(SC-70)
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Bidirectional Channels: 2
  • Voltage - Reverse Standoff (Typ): 35V
  • Voltage - Breakdown (Min): 38V
  • Voltage - Clamping (Max) @ Ipp: 59V
  • Current - Peak Pulse (10/1000µs): 3A (8/20µs)
  • Power - Peak Pulse: 170W
  • Power Line Protection: No
  • Applications: Automotive, CAN
  • Capacitance @ Frequency: -
  • Mounting Type: Surface Mount
  • Package / Case: SC-70, SOT-323
  • Supplier Device Package: SOT-323-3
  • Base Part Number: ESDCAN06
  • detail: 59V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SOT-323-3
