دیتاشیت STP60NF10
مشخصات دیتاشیت
| نام دیتاشیت | STB60NF10(-1), STP60NF10 |
|---|---|
| حجم فایل | 367.917 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 15 |
دانلود دیتاشیت STB60NF10(-1), STP60NF10 |

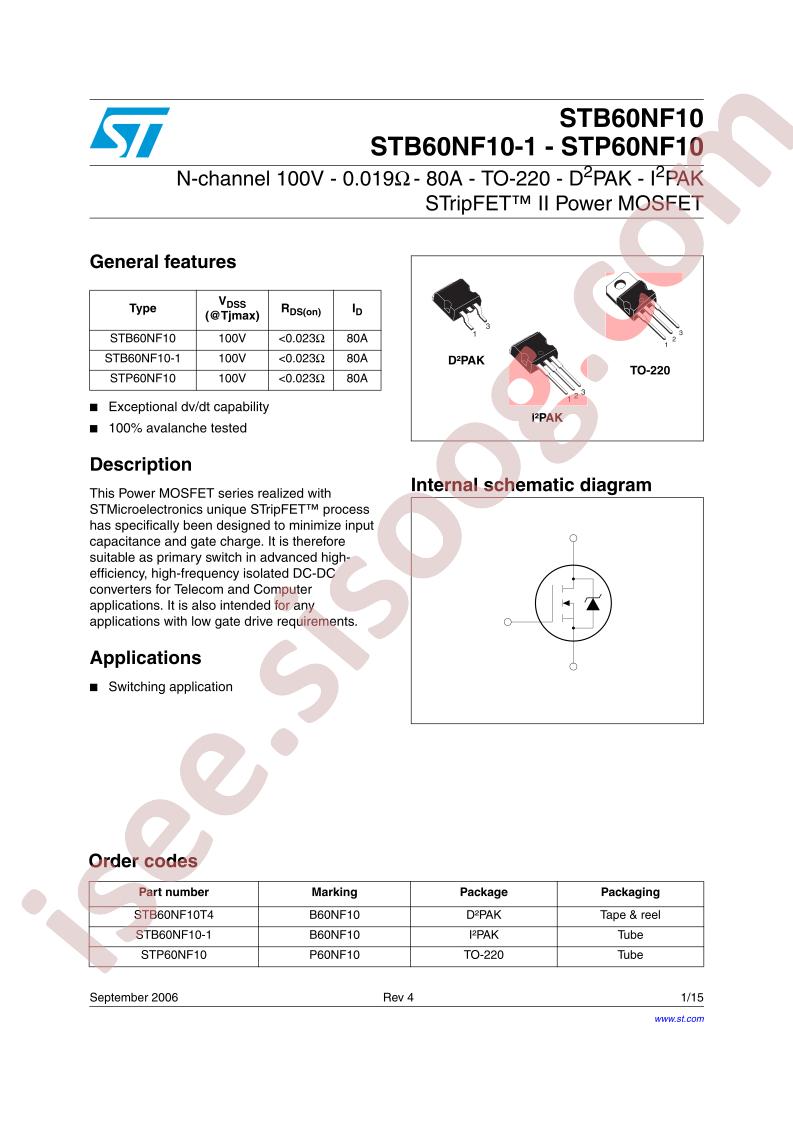

STB60NF10(-1), STP60NF10 Datasheet |
|---|
مشخصات
- Manufacturer: STMicroelectronics
- Series: STripFET™ II
- Packaging: Tube
- Part Status: Active
- FET Type: N-Channel
- Technology: MOSFET (Metal Oxide)
- Drain to Source Voltage (Vdss): 100V
- Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
- Drive Voltage (Max Rds On, Min Rds On): 10V
- Rds On (Max) @ Id, Vgs: 23mOhm @ 40A, 10V
- Vgs(th) (Max) @ Id: 4V @ 250µA
- Gate Charge (Qg) (Max) @ Vgs: 104nC @ 10V
- Vgs (Max): ±20V
- Input Capacitance (Ciss) (Max) @ Vds: 4270pF @ 25V
- FET Feature: -
- Power Dissipation (Max): 300W (Tc)
- Operating Temperature: -
- Mounting Type: Through Hole
- Supplier Device Package: TO-220AB
- Package / Case: TO-220-3
- Base Part Number: STP60N
- detail: N-Channel 100V 80A (Tc) 300W (Tc) Through Hole TO-220AB
