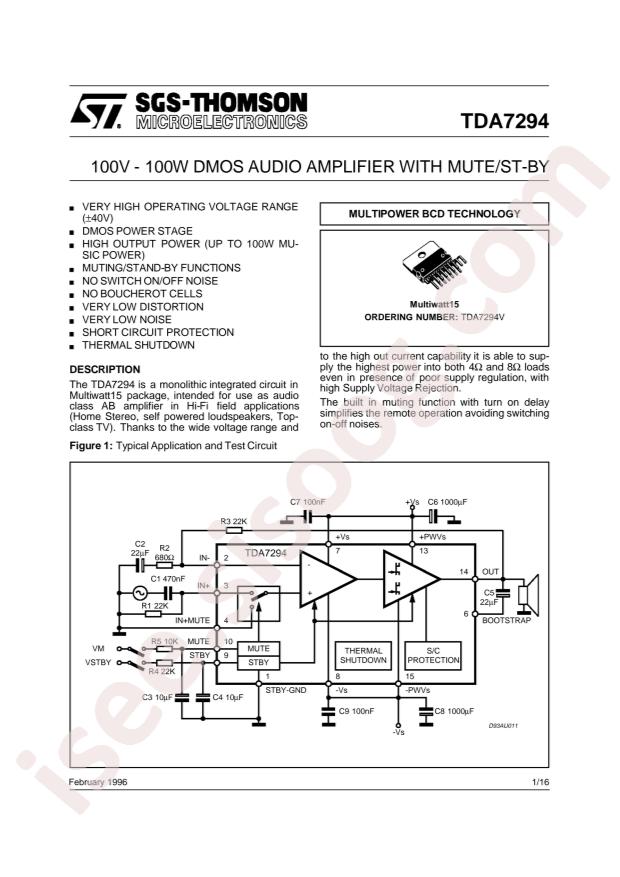

دیتاشیت TDA7294V

TDA7294

مشخصات دیتاشیت

نام دیتاشیت TDA7294
حجم فایل 1513.345 کیلوبایت
نوع فایل pdf
تعداد صفحات 17

دانلود دیتاشیت TDA7294

TDA7294 Datasheet

مشخصات

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Audio Power OpAmps
  • Datasheet: STMicroelectronics TDA7294V
  • Output Power: 100Wx1@8Ω
  • Supply Voltage: 10V~40V
  • Speaker Channels: 1
  • Operating Temperature: 0°C~+70°C
  • Type of Power Amplifier: Class AB
  • Package: Multiwatt-15-V
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Type: Class AB
  • Output Type: 1-Channel (Mono)
  • Max Output Power x Channels @ Load: 100W x 1 @ 8Ohm
  • Voltage - Supply: ±10V ~ 40V
  • Features: Depop, Mute, Short-Circuit and Thermal Protection, Standby
  • Mounting Type: Through Hole
  • Supplier Device Package: 15-Multiwatt
  • Package / Case: Multiwatt-15 (Vertical, Bent and Staggered Leads)
  • Base Part Number: TDA7294
  • detail: Amplifier IC 1-Channel (Mono) Class AB 15-Multiwatt
