دیتاشیت STP80NF03L-04

STP80NF03L

مشخصات دیتاشیت

نام دیتاشیت STP80NF03L
حجم فایل 214.082 کیلوبایت
نوع فایل pdf
تعداد صفحات 8

دانلود دیتاشیت STP80NF03L

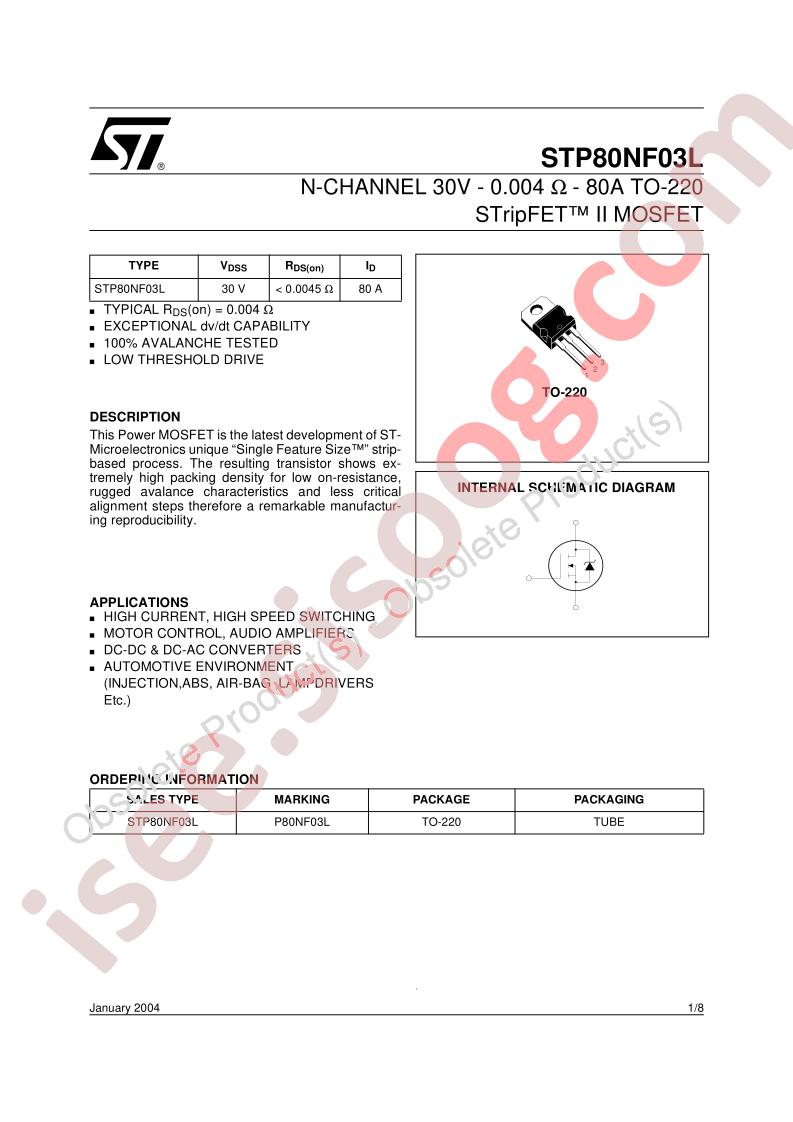

STP80NF03L Datasheet

مشخصات

  • Manufacturer: STMicroelectronics
  • Series: STripFET™ II
  • Packaging: Tube
  • Part Status: Obsolete
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 30V
  • Current - Continuous Drain (Id) @ 25°C: 80A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 4.5V, 10V
  • Rds On (Max) @ Id, Vgs: 4.5mOhm @ 40A, 10V
  • Vgs(th) (Max) @ Id: 2.5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 110nC @ 4.5V
  • Vgs (Max): ±20V
  • Input Capacitance (Ciss) (Max) @ Vds: 5500pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 300W (Tc)
  • Operating Temperature: 175°C (TJ)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-220AB
  • Package / Case: TO-220-3
  • Base Part Number: STP80N
  • detail: N-Channel 30V 80A (Tc) 300W (Tc) Through Hole TO-220AB
