LM1875 Datasheet

Datasheet specifications

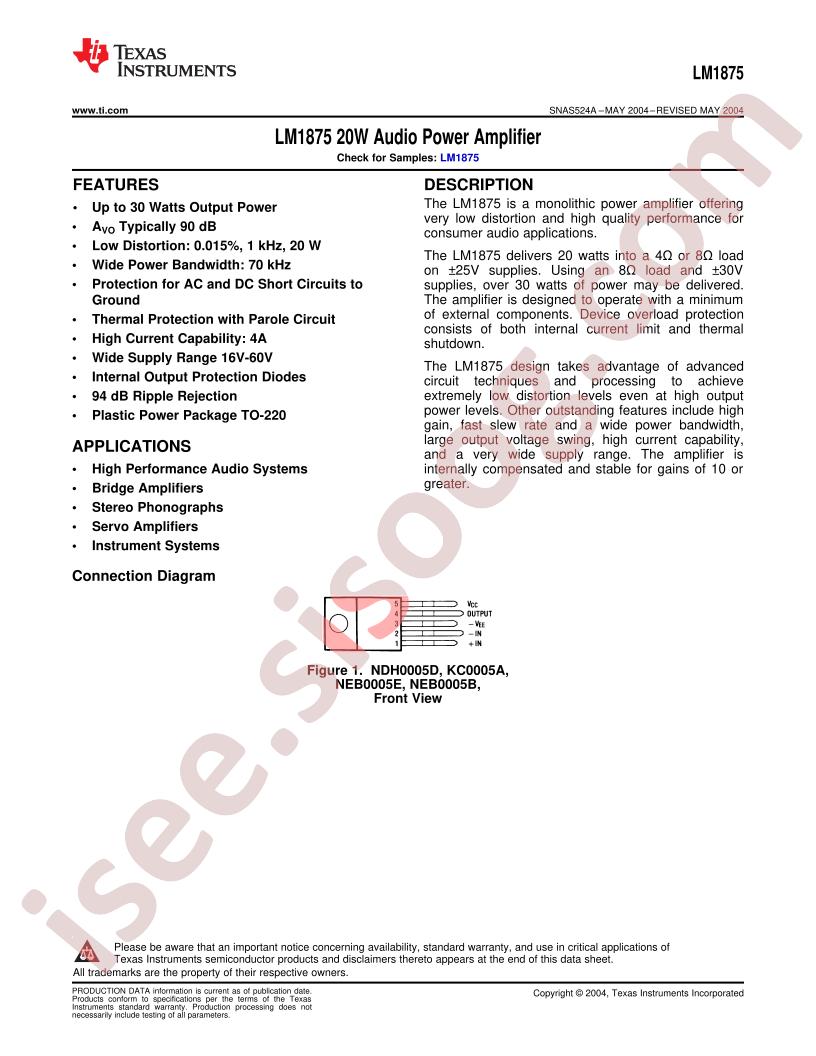

Datasheet's name LM1875 Datasheet
File size 3373.675 KB
File type pdf
Number of pages 16

Download Datasheet LM1875 Datasheet

Download Datasheet

Other documentations

LM1875T 17 pages

TO-220 Leadbend Options 10 pages

Technical specifications

  • RoHS: true
  • Category: Operational Amplifier/Comparator/Audio Power OpAmps
  • Datasheet: Texas Instruments LM1875T/LF02
  • Output Power: 25Wx1@8Ω
  • Supply Voltage: 16V~60V;8V~30V
  • Speaker Channels: 1
  • Operating Temperature: 0°C~+70°C
  • Type of Power Amplifier: -

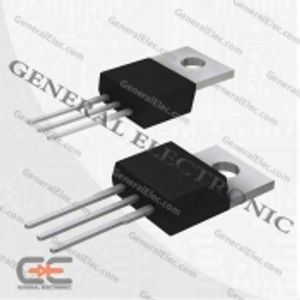

  • Package: TO-220-5
  • Manufacturer: Texas Instruments
  • Type: Class AB
  • Part Status: Active
  • Package / Case: TO-220-5 Formed Leads
  • Base Part Number: LM1875
  • Series: -
  • Mounting Type: Through Hole
  • Voltage - Supply: 16V ~ 60V, ±8V ~ 30V
  • Packaging: Tube
  • Output Type: 1-Channel (Mono)
  • Max Output Power x Channels @ Load: 25W x 1 @ 8Ohm
  • Supplier Device Package: TO-220-5
  • Features: Short-Circuit and Thermal Protection
  • detail: Amplifier IC 1-Channel (Mono) Class AB TO-220-5
