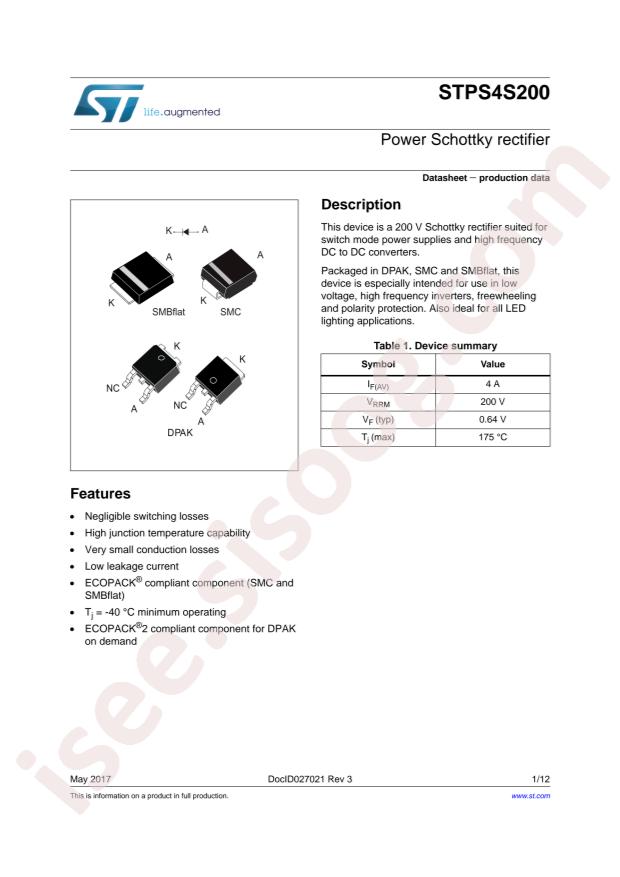

STPS4S200B-TR دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STPS4S200B-TR
|
|
حجم فایل
|
49.967
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
12
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Schottky Barrier Diodes (SBD)
-
Datasheet:
STMicroelectronics STPS4S200B-TR
-
Reverse Voltage (Vr):
200V
-
Forward Voltage (Vf@If):
870mV@4A
-
Reverse Leakage Current (Ir):
5uA@200V
-
Average Rectified Current (Io):
4A
-
Package:
TO-252
-
Manufacturer:
STMicroelectronics
-
Series:
ECOPACK®
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Diode Type:
Schottky
-
Voltage - DC Reverse (Vr) (Max):
200V
-
Current - Average Rectified (Io):
4A
-
Voltage - Forward (Vf) (Max) @ If:
870mV @ 4A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
5µA @ 200V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
DPAK
-
Operating Temperature - Junction:
-40°C ~ 175°C
-
Base Part Number:
STPS4
-
detail:
Diode Schottky 200V 4A Surface Mount DPAK
