STN3N45K3 دیتاشیت

STN3N45K3

مشخصات دیتاشیت

نام دیتاشیت STN3N45K3
حجم فایل 57.652 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

مشاهده دیتاشیت STN3N45K3

دانلود دیتاشیت

سایر مستندات

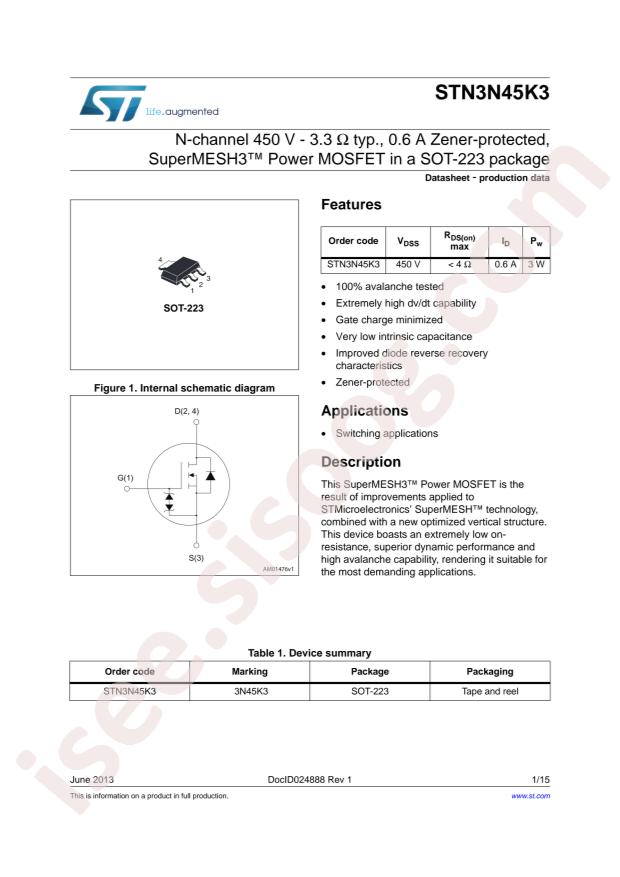

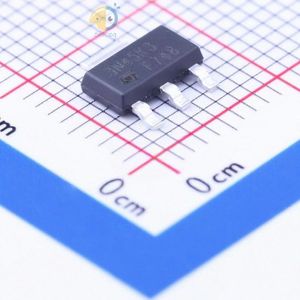

STN3N45K3 Datasheet 15 pages

مشخصات فنی

  • RoHS: true
  • Type: N Channel
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STN3N45K3
  • Power Dissipation (Pd): 3W
  • Total Gate Charge (Qg@Vgs): 9.5nC@10V
  • Drain Source Voltage (Vdss): 450V
  • Input Capacitance (Ciss@Vds): 164pF@50V
  • Continuous Drain Current (Id): 600mA
  • Gate Threshold Voltage (Vgs(th)@Id): 4.5V@50uA
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 3.8Ω@10V,500mA
  • Package: SOT-223
  • Manufacturer: STMicroelectronics
  • Series: SuperMESH3™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 450V
  • Current - Continuous Drain (Id) @ 25°C: 600mA (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 3.8Ohm @ 500mA, 10V
  • Vgs(th) (Max) @ Id: 4.5V @ 50µA
  • Gate Charge (Qg) (Max) @ Vgs: 6nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 150pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 3W (Ta)
  • Operating Temperature: 150°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: SOT-223
  • Package / Case: TO-261-4, TO-261AA
  • Base Part Number: STN3N
  • detail: N-Channel 450V 600mA (Tc) 3W (Ta) Surface Mount SOT-223
