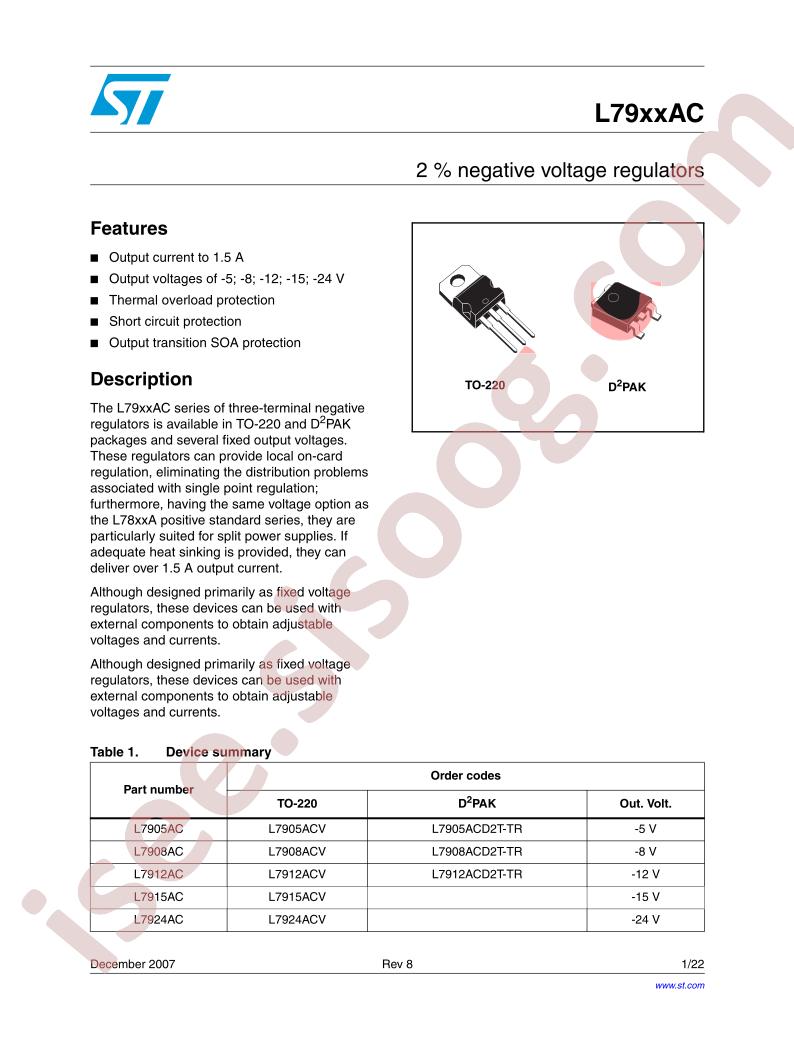

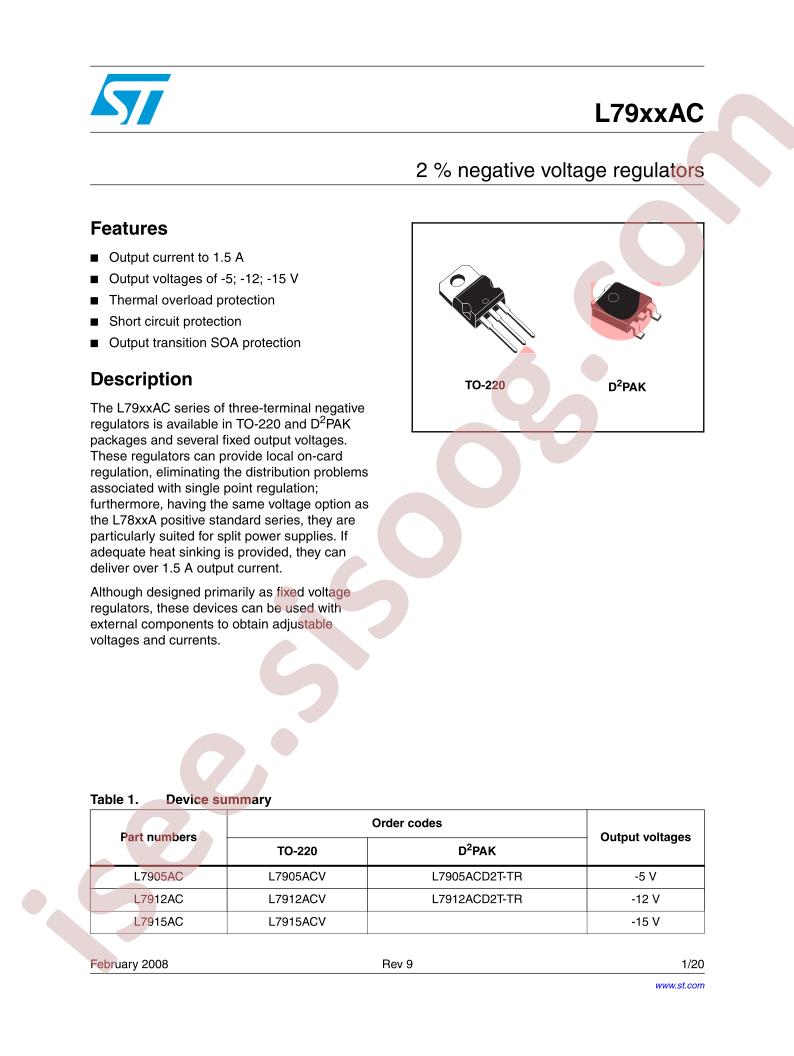

L7912ACV Datasheet
Datasheet specifications
|
Datasheet's name
|
L7912ACV
|
|
File size
|
766.35
KB
|
|
File type
|
pdf
|
|
Number of pages
|
20
|
Technical specifications
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics L7912ACV
-
Output Type:
Fixed
-
Output Current:
1.5A
-
Output Voltage:
12V
-
Dropout Voltage:
1.1V@(1A)
-
Output Polarity:
Negative
-
Number of Outputs:
1
-
Maximum Input Voltage:
35V
-
Operating Temperature:
0°C~+125°C
-
Quiescent Current (Ground Current):
3mA
-
Power Supply Rejection Ratio (PSRR):
60dB@(120Hz)
-
Package:
TO-220
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Output Configuration:
Negative
-
Number of Regulators:
1
-
Voltage - Input (Max):
-35V
-
Voltage - Output (Min/Fixed):
-12V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
1.1V @ 1A (Typ)
-
Current - Output:
1.5A
-
Current - Quiescent (Iq):
3mA
-
PSRR:
60dB (120Hz)
-
Control Features:
-
-
Protection Features:
Over Temperature, Short Circuit
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-3
-
Supplier Device Package:
TO-220AB
-
Base Part Number:
L7912
-
detail:
Linear Voltage Regulator IC 1 Output 1.5A TO-220AB
