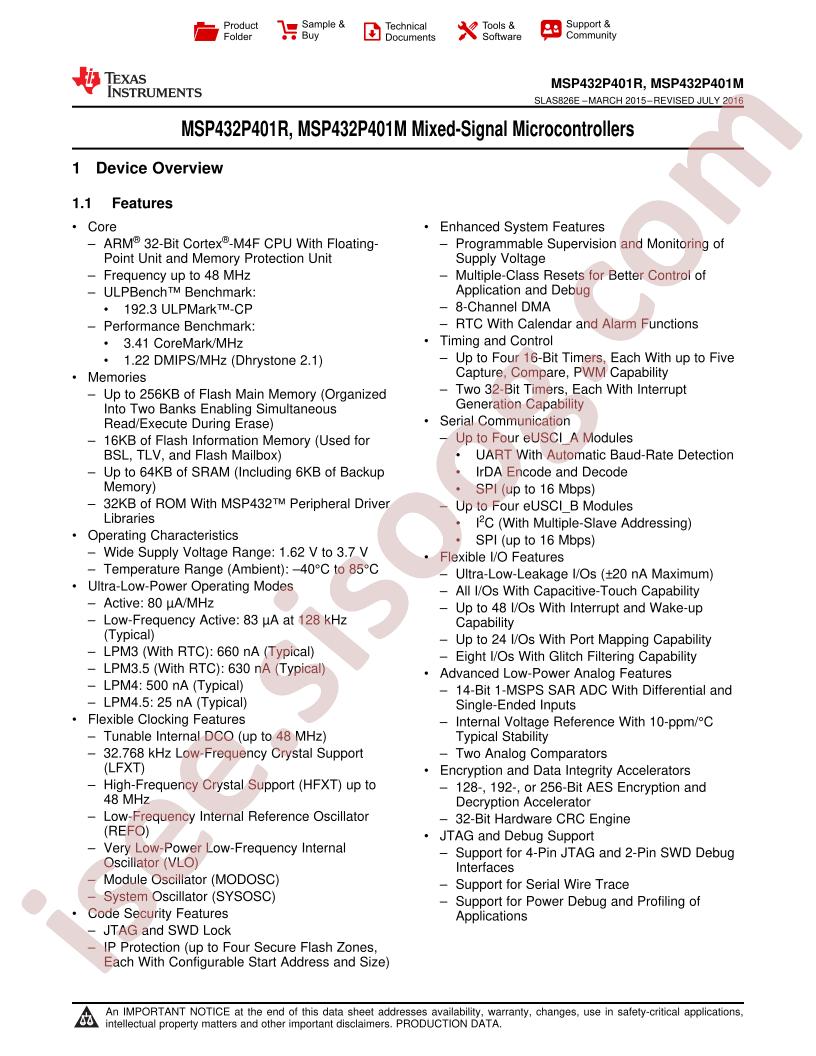

دیتاشیت MSP432P401RIRGCR
مشخصات دیتاشیت
| نام دیتاشیت | MSP432P401RIRGCR |
|---|---|
| حجم فایل | 2743.352 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 200 |
MSP432P401RIRGCR |
دانلود دیتاشیت |
|---|
سایر مستندات
Connected Sensors Building Automation Systems Guide 13 pages
MSP432P401x Datasheet 198 pages
MSP432P4xx Family Tech Ref Manual 1053 pages
MSP432P401R Errata 15 pages
مشخصات فنی
- RoHS: true
- EEPROM: -
- CPU Core: ARM Cortex-M4
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 64KB
- Watchdog: -
- ADC (Bit): 14bit
- DAC (Bit): -
- Datasheet: Texas Instruments MSP432P401RIRGCR
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 48MHz
- GPIO Ports Number: 48
- Low-Voltage Detect: -
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Peripheral/Function: DMA;PWM
- Program Memory Type: FLASH
- Direct Memory Access: -
- Program Storage Size: 256KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.62V~3.7V
- Infrared Data Association: -
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: QFN-64-EP(9x9)
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Connectivity: I²C, IrDA, SPI, UART/USART
- Packaging: Cut Tape (CT)
- Data Converters: A/D 14x14b
- Number of I/O: 48
- Core Size: 32-Bit
- Core Processor: ARM® Cortex®-M4F
- Supplier Device Package: 64-VQFN (9x9)
- Operating Temperature: -40°C ~ 85°C (TA)
- Part Status: Active
- EEPROM Size: -
- Package / Case: 64-VFQFN Exposed Pad
- Voltage - Supply (Vcc/Vdd): 1.62V ~ 3.7V
- Program Memory Size: 256KB (256K x 8)
- Base Part Number: MSP432
- Speed: 48MHz
- Series: MSP432™
- Oscillator Type: Internal
- Peripherals: DMA, POR, PWM, WDT
- detail: ARM® Cortex®-M4F MSP432™ Microcontroller IC 32-Bit 48MHz 256KB (256K x 8) FLASH 64-VQFN (9x9)
