دیتاشیت L293DNE

L293(D)

مشخصات دیتاشیت

نام دیتاشیت L293(D)
حجم فایل 315.855 کیلوبایت
نوع فایل pdf
تعداد صفحات 18

دانلود دیتاشیت L293(D)

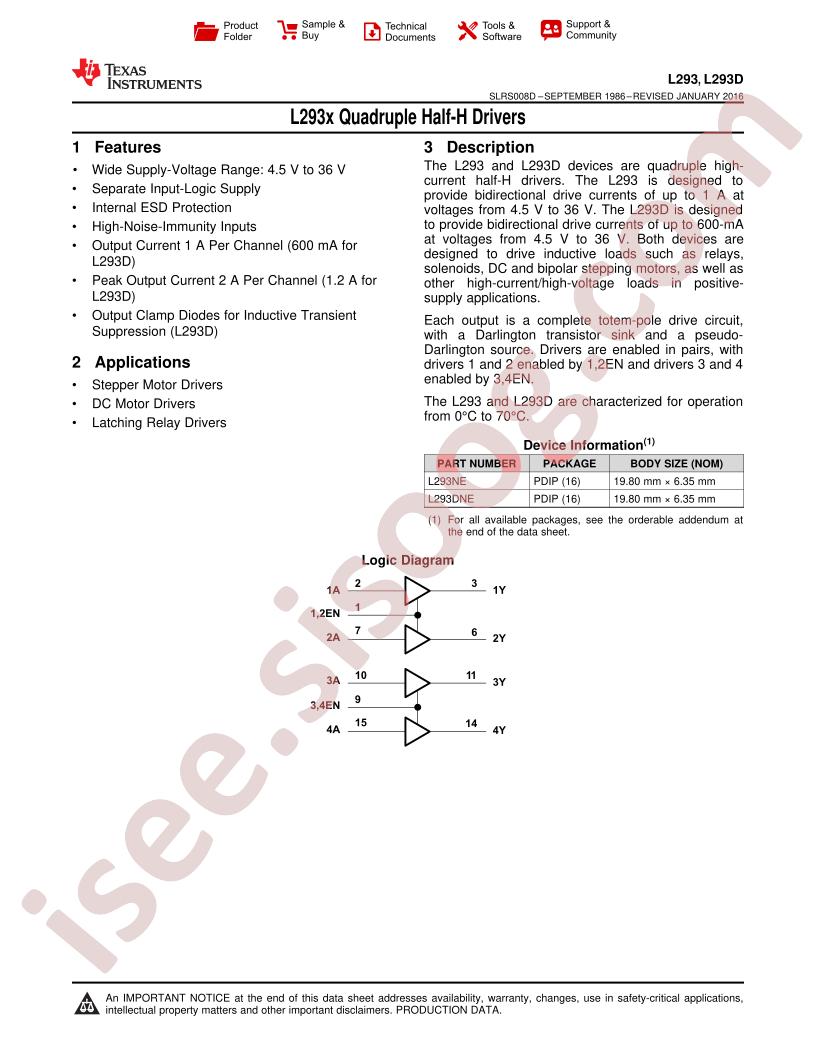

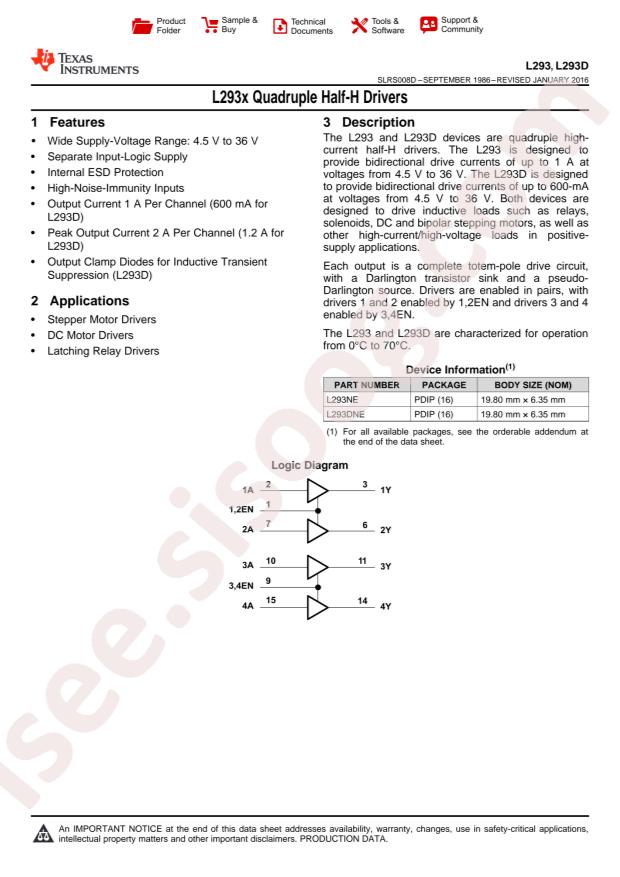

L293(D) Datasheet

مشخصات

  • Package / Case: 16-DIP (0.300", 7.62mm)
  • Part Status: Active
  • Base Part Number: L293
  • Current - Output: 600mA
  • Series: -
  • Voltage - Supply: 4.5V ~ 36V
  • Technology: Bipolar
  • Manufacturer: Texas Instruments
  • Mounting Type: Through Hole
  • Voltage - Load: 4.5V ~ 36V
  • Motor Type - AC, DC: Brushed DC
  • Interface: Parallel
  • Motor Type - Stepper: Bipolar
  • Packaging: Tube
  • Function: Driver - Fully Integrated, Control and Power Stage
  • Output Configuration: Half Bridge (4)
  • Supplier Device Package: 16-PDIP
  • Operating Temperature: 0°C ~ 70°C (TA)
  • Step Resolution: -
  • Applications: General Purpose
  • detail: Bipolar Motor Driver Bipolar Parallel 16-PDIP
