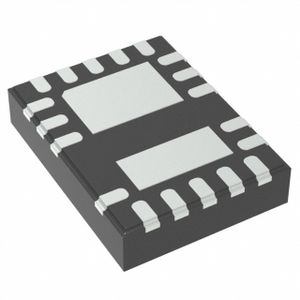

LMG1210RVRT دیتاشیت

LMG1210RVRT

مشخصات دیتاشیت

نام دیتاشیت LMG1210RVRT
حجم فایل 83.766 کیلوبایت
نوع فایل pdf
تعداد صفحات 31

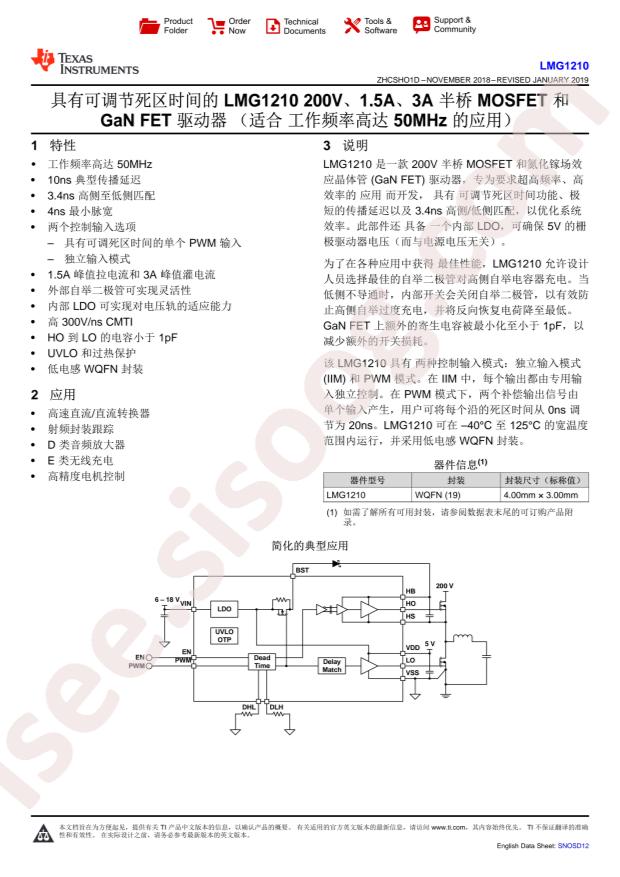

مشاهده دیتاشیت LMG1210RVRT

دانلود دیتاشیت

سایر مستندات

LMG1210 30 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: Texas Instruments LMG1210RVRT
  • Fall Time: 500ps
  • Load Type: MOSFET
  • Rise Time: 500ps
  • Supply Voltage: 4.75V~5.25V;6V~18V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -40°C~+125°C@(Tj)
  • Peak Output Current(sink): 3A
  • Peak Output Current(source): 1.5A
  • Package: WQFN-19
  • Manufacturer: Texas Instruments
  • Part Status: Active
  • Package / Case: 19-WFQFN Exposed Pad
  • Base Part Number: LMG121
  • Series: -
  • Mounting Type: Surface Mount, Wettable Flank
  • Channel Type: Independent
  • Gate Type: N-Channel MOSFET
  • Voltage - Supply: 4.75V ~ 5.25V, 6V ~ 18V
  • Rise / Fall Time (Typ): 500ps, 500ps
  • Current - Peak Output (Source, Sink): 1.5A, 3A
  • High Side Voltage - Max (Bootstrap): 200V
  • Packaging: Cut Tape (CT)
  • Input Type: Non-Inverting
  • Supplier Device Package: 19-WQFN (3x4)
  • Logic Voltage - VIL, VIH: -
  • detail: Half-Bridge Gate Driver IC Non-Inverting 19-WQFN (3x4)
