L6384ED013TR دیتاشیت

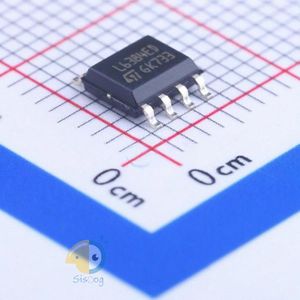

L6384ED013TR

مشخصات دیتاشیت

نام دیتاشیت L6384ED013TR
حجم فایل 81.424 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

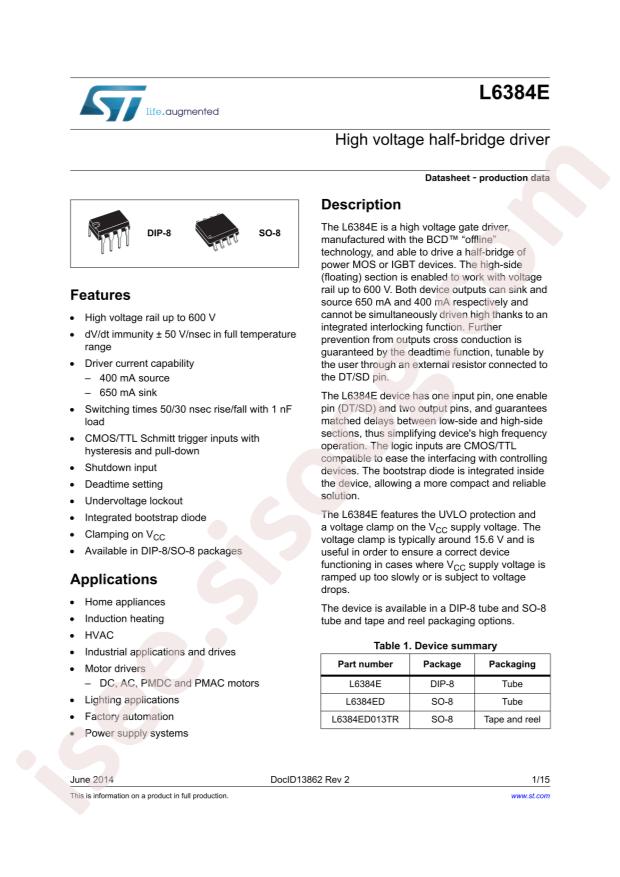

مشاهده دیتاشیت L6384ED013TR

دانلود دیتاشیت

سایر مستندات

L6384E 18 pages

L6384ED013TR 17 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/Gate Drive ICs
  • Datasheet: STMicroelectronics L6384ED013TR
  • Fall Time: 30ns
  • Load Type: IGBT;MOSFET
  • Rise Time: 50ns
  • Supply Voltage: 14.6V~16.6V
  • Number of Drivers: 2
  • Driven Configuration: Half Bridge
  • Operating Temperature: -45°C~+125°C@(Tj)
  • Peak Output Current(sink): 650mA
  • Peak Output Current(source): 400mA
  • Package: SOP-8
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Discontinued at Digi-Key
  • Channel Type: Synchronous
  • Gate Type: IGBT, N-Channel MOSFET
  • Voltage - Supply: 14.6V ~ 16.6V
  • Logic Voltage - VIL, VIH: 1.5V, 3.6V
  • Current - Peak Output (Source, Sink): 400mA, 650mA
  • Input Type: Inverting
  • High Side Voltage - Max (Bootstrap): 600V
  • Rise / Fall Time (Typ): 50ns, 30ns
  • Mounting Type: Through Hole
  • Package / Case: 8-DIP (0.300", 7.62mm)
  • Supplier Device Package: 8-DIP
  • Base Part Number: L6384
  • detail: Half-Bridge Gate Driver IC Inverting 8-DIP
