VIPER265KDTR دیتاشیت

VIPER265KDTR

مشخصات دیتاشیت

نام دیتاشیت VIPER265KDTR
حجم فایل 65.047 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

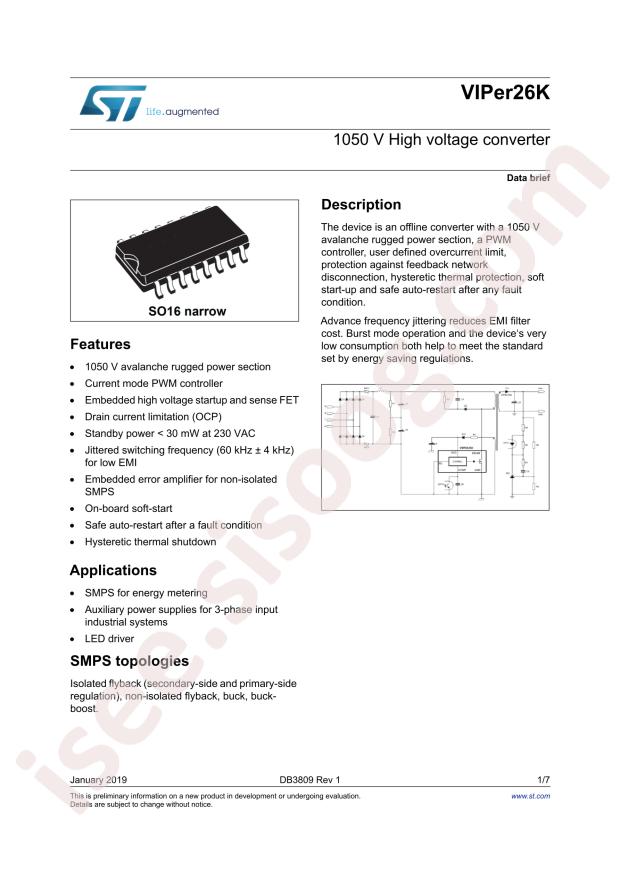

مشاهده دیتاشیت VIPER265KDTR

دانلود دیتاشیت

سایر مستندات

VIPER26K Data Brief 7 pages

VIPER26K 28 pages

مشخصات فنی

  • RoHS: true
  • Category: Power Supply Chip/AC-DC Controllers & Regulators
  • Topology: Step-down;Step-down-Boost;Flyback
  • Datasheet: STMicroelectronics VIPER265KDTR
  • Duty Cycle: 80%
  • Supply Voltage: 11.5V~23.5V
  • Breakdown Voltage: 1050V
  • Switching Frequency: 60kHz
  • Operating Temperature: -40°C~+150°C@(Tj)
  • Package: SOP-16
  • Manufacturer: STMicroelectronics
  • Series: VIPER™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Output Isolation: Either
  • Internal Switch(s): Yes
  • Voltage - Breakdown: 1050V
  • Voltage - Start Up: 13V
  • Voltage - Supply (Vcc/Vdd): 11.5V ~ 23.5V
  • Frequency - Switching: 60kHz
  • Power (Watts): 20W
  • Fault Protection: Current Limiting, Over Load, Short Circuit
  • Control Features: EN, Soft Start
  • Package / Case: 16-SOIC (0.154", 3.90mm Width)
  • Supplier Device Package: 16-SO
  • Mounting Type: Surface Mount
  • detail: Converter Offline Buck, Buck-Boost, Flyback Topology 60kHz 16-SO
