دیتاشیت MSP430F5438AIPZR
مشخصات دیتاشیت
| نام دیتاشیت | MSP430F541,543xA Datasheet |
|---|---|
| حجم فایل | 1852.171 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 115 |

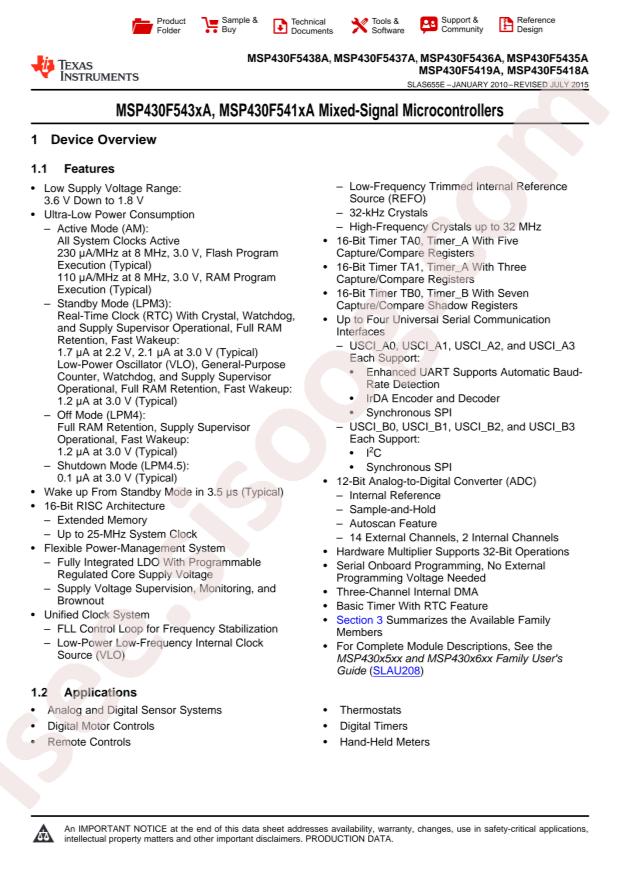

دانلود دیتاشیت MSP430F541,543xA Datasheet |
MSP430F541,543xA Datasheet Datasheet |
|---|
مشخصات
- RoHS: true
- EEPROM: -
- CPU Core: MSP430
- Category: Single Chip Microcomputer/Microcontroller/Microcontroller Units (MCUs/MPUs/SOCs)
- RAM Size: 16KB
- Watchdog: Yes
- ADC (Bit): 12bit
- DAC (Bit): -
- Datasheet: Texas Instruments MSP430F5438AIPZR
- PWM (Bit): -
- Real-Time Clock: -
- CPU Maximum Speed: 25MHz
- GPIO Ports Number: 87
- Low-Voltage Detect: Yes
- CCP Capture/Compare: -
- Internal Comparator: -
- Internal Oscillator: Yes
- Program Memory Type: FLASH
- Direct Memory Access: Yes
- Program Storage Size: 256KB
- Universal Serial Bus: -
- communication protocol: -
- Operating Voltage Range: 1.8V~3.6V
- Infrared Data Association: Yes
- Operating Temperature Range: -40°C~+85°C
- Secure Digital Input and Output: -
- Package: LQFP-100(14x14)
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Connectivity: I²C, IrDA, LINbus, SCI, SPI, UART/USART
- Packaging: Cut Tape (CT)
- Data Converters: A/D 16x12b
- Number of I/O: 87
- Core Size: 16-Bit
- Core Processor: CPUXV2
- Supplier Device Package: 100-LQFP (14x14)
- Operating Temperature: -40°C ~ 85°C (TA)
- Part Status: Active
- EEPROM Size: -
- Package / Case: 100-LQFP
- Voltage - Supply (Vcc/Vdd): 1.8V ~ 3.6V
- Program Memory Size: 256KB (256K x 8)
- Base Part Number: 430F5438
- Speed: 25MHz
- Series: MSP430F5xx
- Oscillator Type: Internal
- Peripherals: Brown-out Detect/Reset, DMA, POR, PWM, WDT
- detail: CPUXV2 MSP430F5xx Microcontroller IC 16-Bit 25MHz 256KB (256K x 8) FLASH 100-LQFP (14x14)
