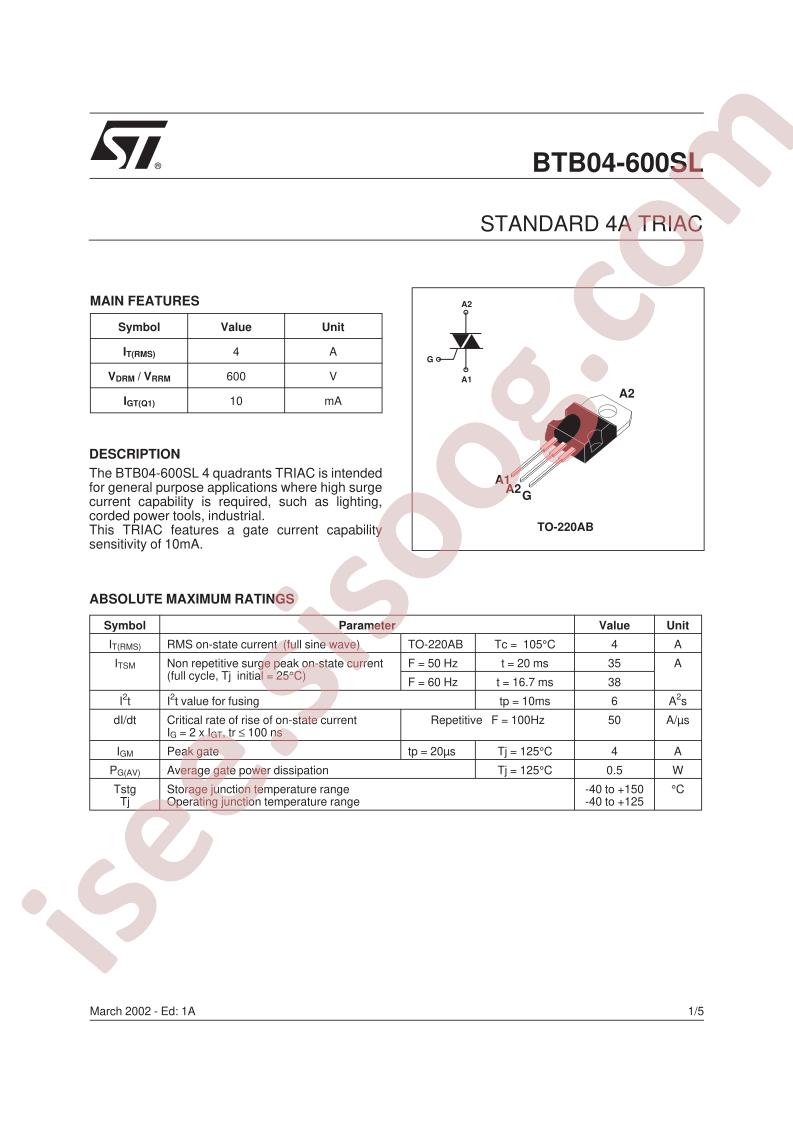

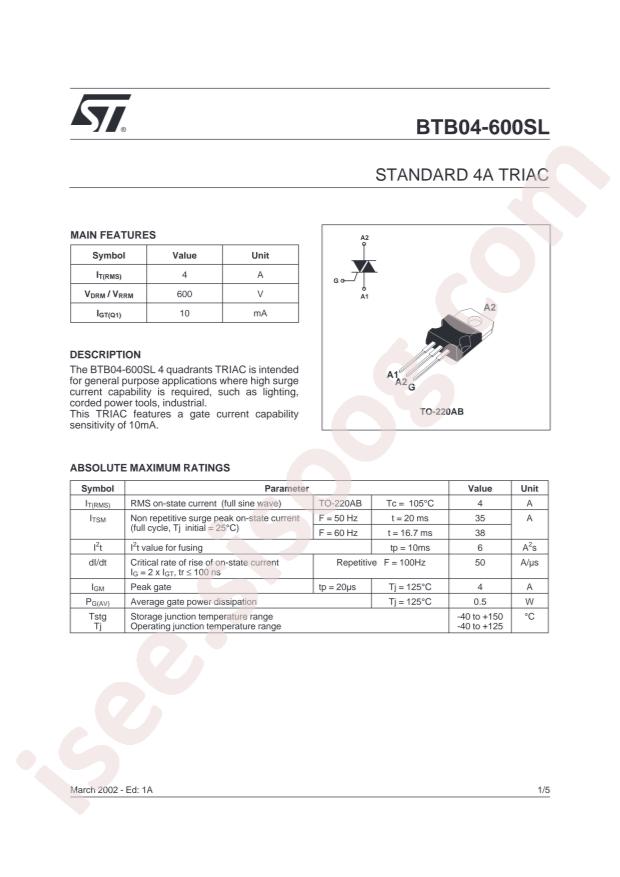

BTB04-600SL 数据手册
其他文档
BTB04-600SL 5 pages
BTB04-600SL 5 pages
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/TRIACs
- SCR Type: 门极灵敏型-High Speed
- Datasheet: STMicroelectronics BTB04-600SL
- Holding Current (Ih): 15mA
- Operating Temperature: -40°C~+125°C@(Tj)
- Gate Trigger Current(Igt): 10mA
- Gate Trigger Voltage (Vgt): 1.3V
- RMS On-State Current(It (rms)): 4A
- Peak Repetitive Off?State Voltage (Vdrm): 600V
- Package: TO-220
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Bulk
- Part Status: Active
- Triac Type: Logic - Sensitive Gate
- Voltage - Off State: 600V
- Current - On State (It (RMS)) (Max): 4A
- Voltage - Gate Trigger (Vgt) (Max): 1.3V
- Current - Non Rep. Surge 50, 60Hz (Itsm): 35A, 38A
- Current - Gate Trigger (Igt) (Max): 10mA
- Current - Hold (Ih) (Max): 15mA
- Configuration: Single
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: BTB04
- detail: TRIAC Logic - Sensitive Gate 600V 4A Through Hole TO-220AB
