STPS30SM120ST دیتاشیت

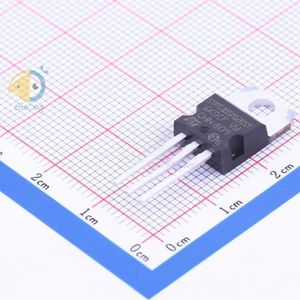

STPS30SM120ST

مشخصات دیتاشیت

نام دیتاشیت STPS30SM120ST
حجم فایل 59.332 کیلوبایت
نوع فایل pdf
تعداد صفحات 14

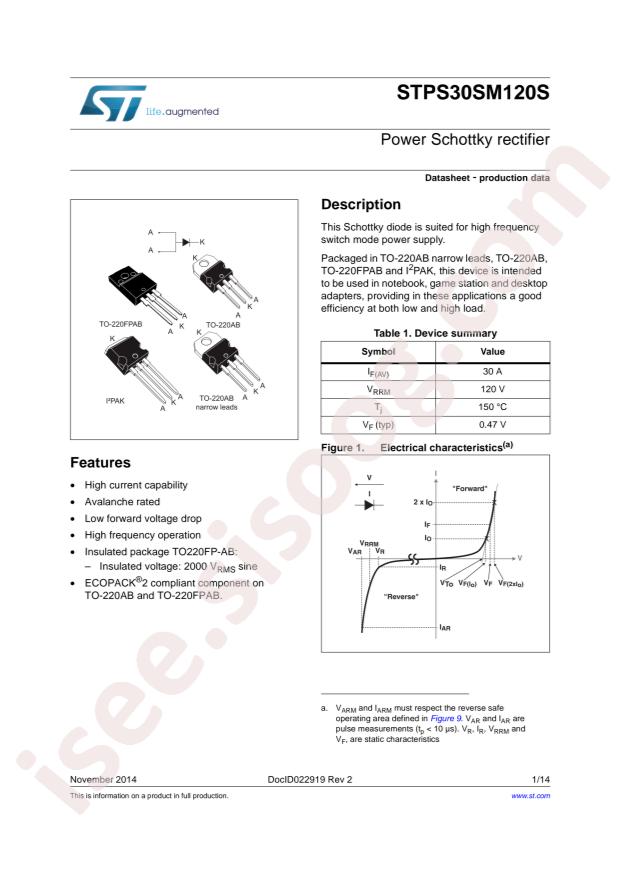

مشاهده دیتاشیت STPS30SM120ST

دانلود دیتاشیت

سایر مستندات

STPS30SM120S 11 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPS30SM120ST
  • Reverse Voltage (Vr): 120V
  • Forward Voltage (Vf@If): 950mV@30A
  • Reverse Leakage Current (Ir): 275uA@120V
  • Average Rectified Current (Io): 30A
  • Package: TO-220AB-3
  • Manufacturer: STMicroelectronics
  • Series: ECOPACK®2
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 120V
  • Current - Average Rectified (Io): 30A
  • Voltage - Forward (Vf) (Max) @ If: 950mV @ 30A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 275µA @ 120V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-3
  • Supplier Device Package: TO-220AB
  • Operating Temperature - Junction: 150°C (Max)
  • Base Part Number: STPS30
  • detail: Diode Schottky 120V 30A Through Hole TO-220AB
