دیتاشیت STPS1545FP

STPS1545

مشخصات دیتاشیت

نام دیتاشیت STPS1545
حجم فایل 530.434 کیلوبایت
نوع فایل pdf
تعداد صفحات 13

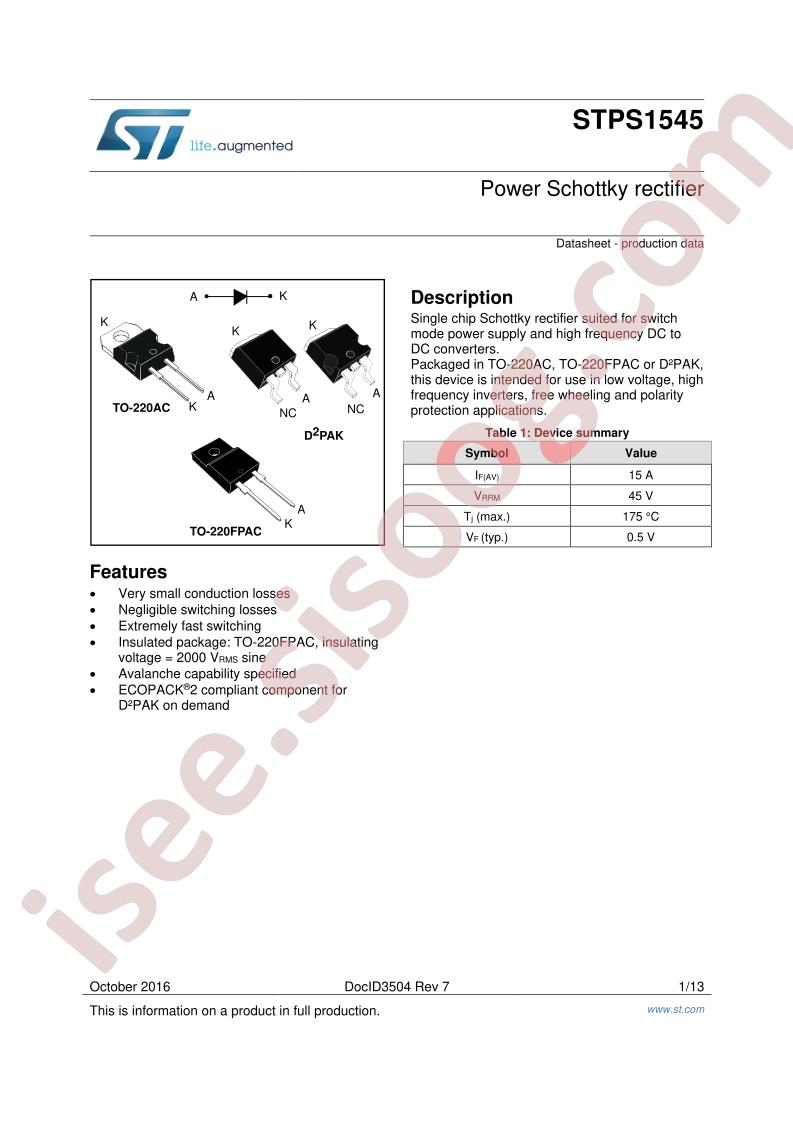

دانلود دیتاشیت STPS1545

STPS1545 Datasheet

مشخصات

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPS1545FP
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 45V
  • Forward Voltage (Vf@If): 840mV@30A
  • Reverse Leakage Current (Ir): 200uA@45V
  • Average Rectified Current (Io): 15A
  • Package: TO-220
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 45V
  • Current - Average Rectified (Io): 15A
  • Voltage - Forward (Vf) (Max) @ If: 840mV @ 30A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 200µA @ 45V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-2 Full Pack
  • Supplier Device Package: TO-220FPAC
  • Operating Temperature - Junction: 175°C (Max)
  • Base Part Number: STPS1545
  • detail: Diode Schottky 45V 15A Through Hole TO-220FPAC
