STTH15S12D دیتاشیت

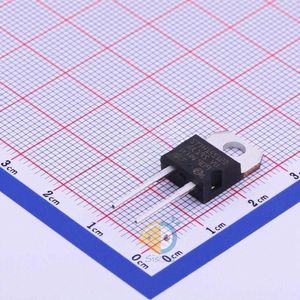

STTH15S12D

مشخصات دیتاشیت

نام دیتاشیت STTH15S12D
حجم فایل 41.587 کیلوبایت
نوع فایل pdf
تعداد صفحات 10

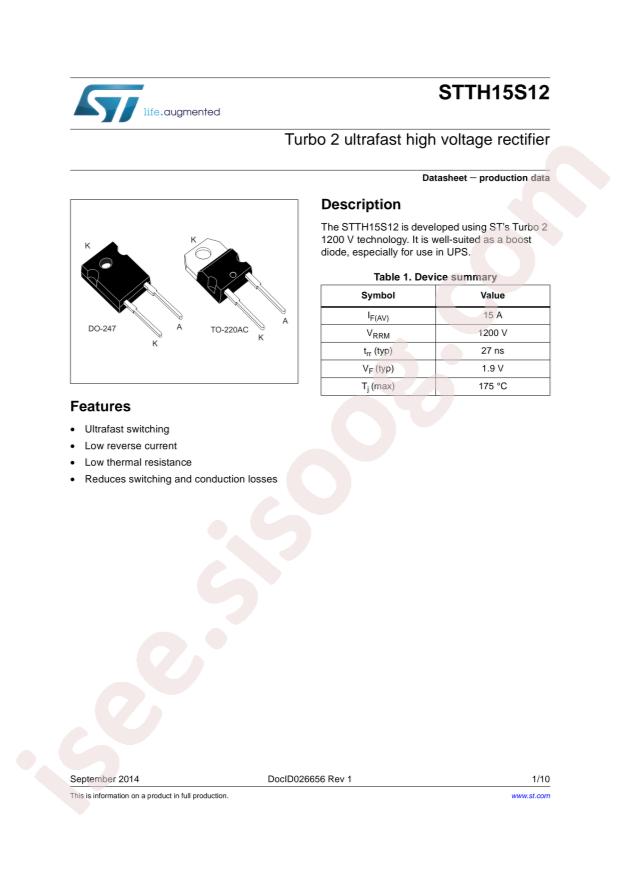

مشاهده دیتاشیت STTH15S12D

دانلود دیتاشیت

سایر مستندات

STTH15S12D 10 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Diodes - General Purpose
  • Datasheet: STMicroelectronics STTH15S12D
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 1.2kV
  • Forward Voltage (Vf@If): 3.1V@15A
  • Reverse Leakage Current: 10uA@1.2kV
  • Average Rectified Current (Io): 15A
  • Package: TO-220AC-2
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Tube
  • Part Status: Active
  • Diode Type: Standard
  • Voltage - DC Reverse (Vr) (Max): 1200V
  • Current - Average Rectified (Io): 15A
  • Voltage - Forward (Vf) (Max) @ If: 3.1V @ 15A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Reverse Recovery Time (trr): 40ns
  • Current - Reverse Leakage @ Vr: 10µA @ 1200V
  • Capacitance @ Vr, F: -
  • Mounting Type: Through Hole
  • Package / Case: TO-220-2
  • Supplier Device Package: TO-220AC
  • Operating Temperature - Junction: 175°C (Max)
  • Base Part Number: STTH15S
  • detail: Diode Standard 1200V 15A Through Hole TO-220AC
