TS820-600T 数据手册
其他文档

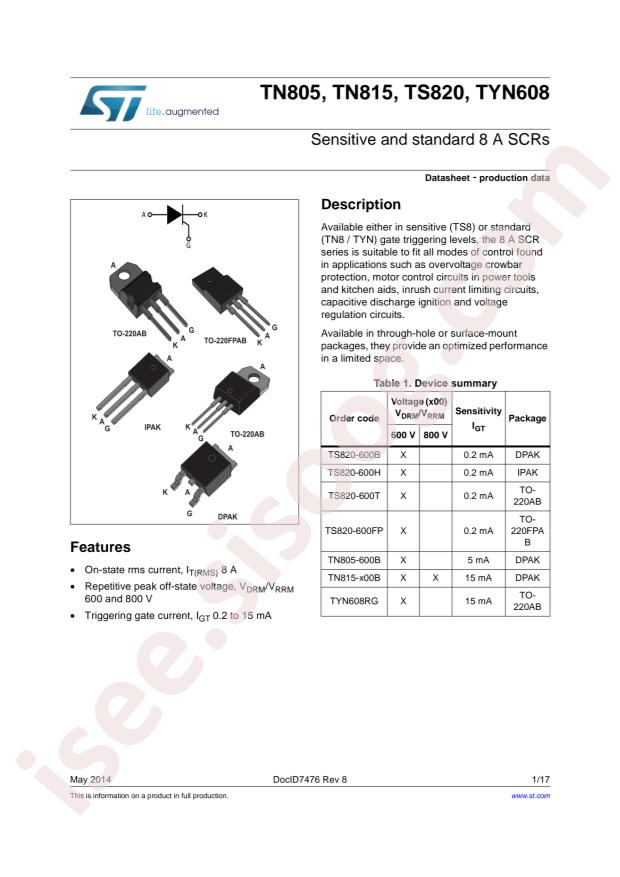

TN805/815, TS820, TYN608 17 pages
TS820-600T 9 pages
技术规格
- RoHS: true
- Category: Triode/MOS Tube/Transistor/TRIACs
- Datasheet: STMicroelectronics TS820-600T
- Package: TO-220AB-3
- Manufacturer: STMicroelectronics
- Series: -
- Packaging: Tube
- Part Status: Active
- Voltage - Off State: 600V
- Voltage - Gate Trigger (Vgt) (Max): 800mV
- Current - Gate Trigger (Igt) (Max): 200µA
- Voltage - On State (Vtm) (Max): 1.6V
- Current - On State (It (AV)) (Max): 5A
- Current - On State (It (RMS)) (Max): 8A
- Current - Hold (Ih) (Max): 5mA
- Current - Off State (Max): 5µA
- Current - Non Rep. Surge 50, 60Hz (Itsm): 70A, 73A
- SCR Type: Sensitive Gate
- Operating Temperature: -40°C ~ 125°C
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: TS820
- detail: SCR 600V 8A Sensitive Gate Through Hole TO-220AB
