X0202MN 5BA4 دیتاشیت

X0202MN 5BA4

مشخصات دیتاشیت

نام دیتاشیت X0202MN 5BA4
حجم فایل 56.513 کیلوبایت
نوع فایل pdf
تعداد صفحات 11

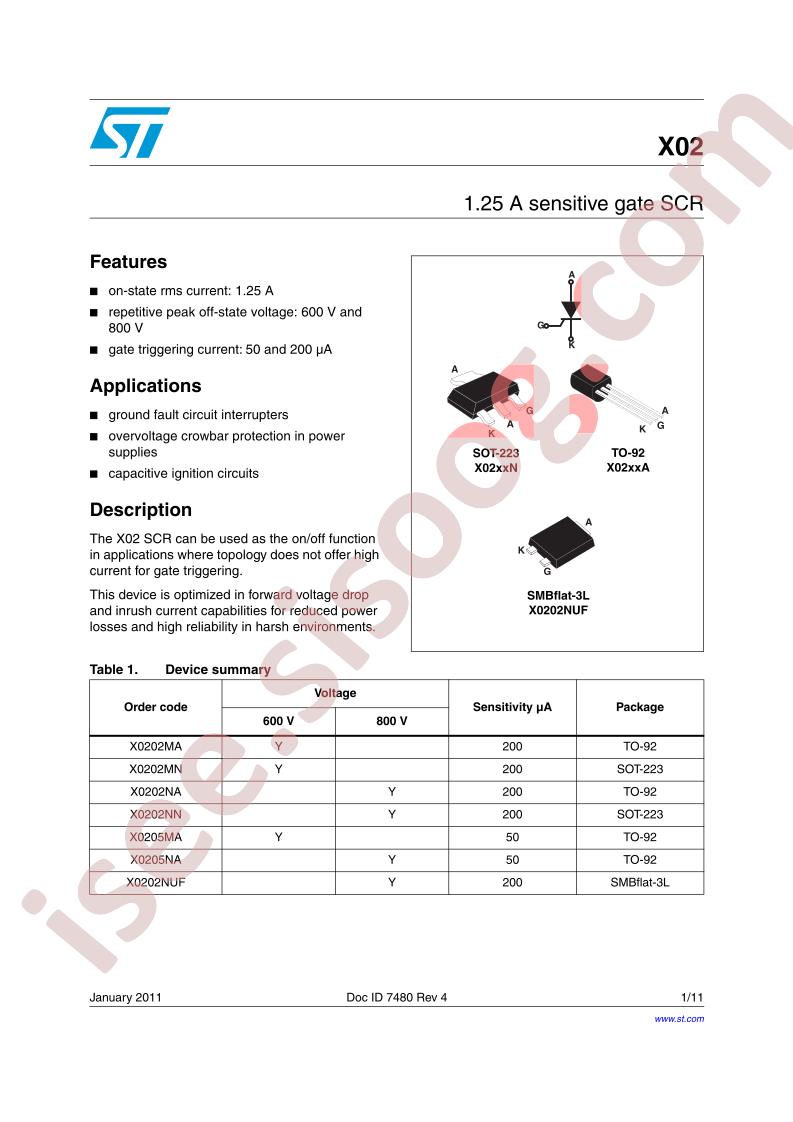

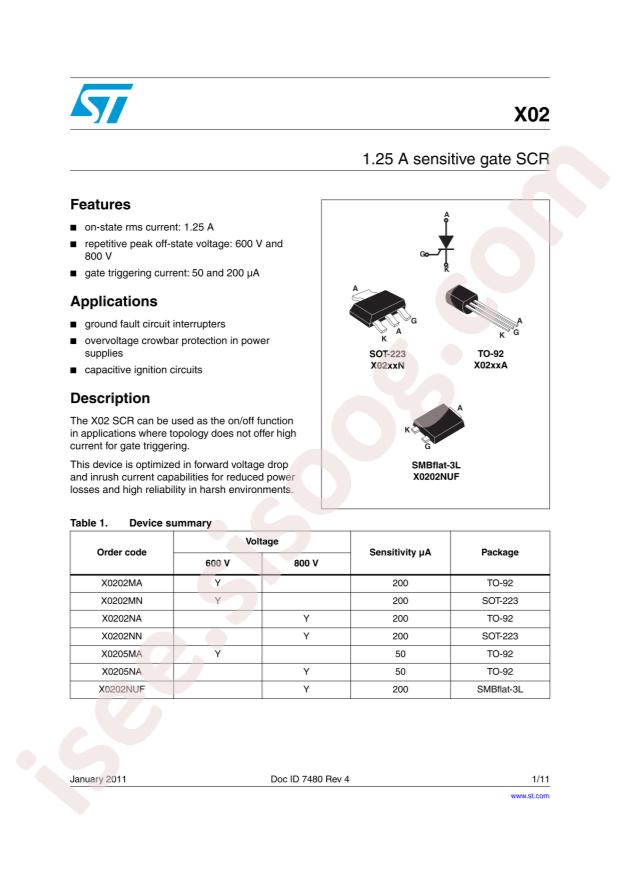

دانلود دیتاشیت X0202MN 5BA4

دانلود دیتاشیت

سایر مستندات

X02 Series 11 pages

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/TRIACs
  • SCR Type: 门极灵敏型
  • Datasheet: STMicroelectronics X0202MN 5BA4
  • Holding Current (Ih): 5mA
  • Operating Temperature: -40°C~+125°C
  • Gate Trigger Current(Igt): 200uA
  • Gate Trigger Voltage (Vgt): 800mV
  • RMS On-State Current(It (rms)): 1.25A
  • Peak Forward On?State Voltage (Vtm): 1.45V
  • Peak Repetitive Off?State Voltage (Vdrm): 600V
  • Package: SOT-223
  • Manufacturer: STMicroelectronics
  • Series: -
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Voltage - Off State: 600V
  • Voltage - Gate Trigger (Vgt) (Max): 800mV
  • Current - Gate Trigger (Igt) (Max): 200µA
  • Voltage - On State (Vtm) (Max): 1.45V
  • Current - On State (It (AV)) (Max): 800mA
  • Current - On State (It (RMS)) (Max): 1.25A
  • Current - Hold (Ih) (Max): 5mA
  • Current - Off State (Max): 5µA
  • Current - Non Rep. Surge 50, 60Hz (Itsm): 22.5A, 25A
  • Mounting Type: Surface Mount
  • Package / Case: TO-261-4, TO-261AA
  • Supplier Device Package: SOT-223
  • Base Part Number: X0202
  • detail: SCR 600V 1.25A Sensitive Gate Surface Mount SOT-223
