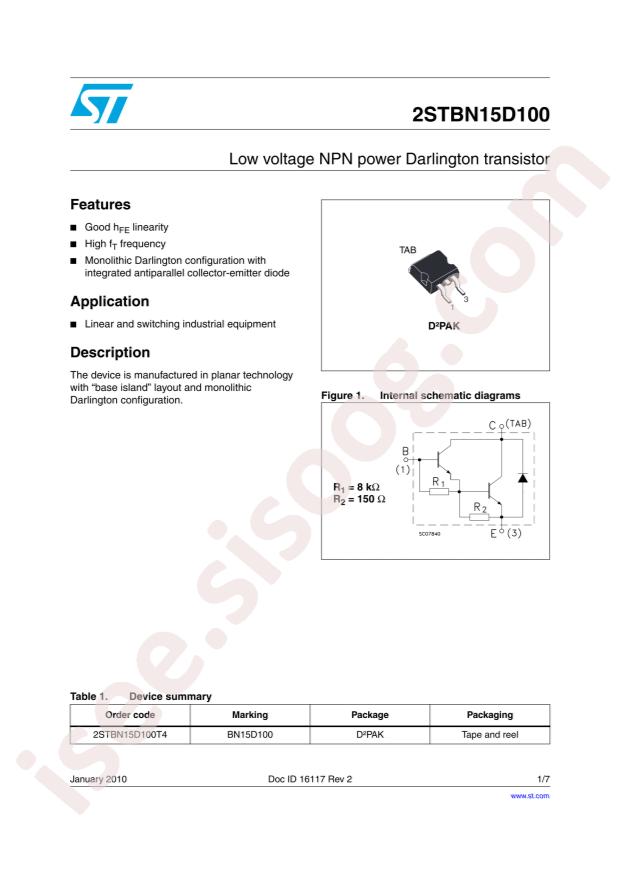

2STBN15D100 دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
2STBN15D100
|
|
حجم فایل
|
45.079
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
7
|
مشخصات فنی
-
RoHS:
true
-
Category:
Triode/MOS Tube/Transistor/Darlington Transistors
-
Datasheet:
STMicroelectronics 2STBN15D100
-
Transistor Type:
NPN
-
Operating Temperature:
+150°C@(Tj)
-
Collector Current (Ic):
12A
-
Power Dissipation (Pd):
70W
-
Transition frequency (fT):
-
-
DC current gain (hFE@Vce,Ic):
750@3V,3A
-
Collector-emitter voltage (Vceo):
100V
-
Collector cut-off current (Icbo@Vcb):
100uA
-
Collector-emitter saturation voltage (VCE(sat)@Ic,Ib):
1.3V@4A,4mA
-
Package:
TO-263
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Current - Collector (Ic) (Max):
12A
-
Voltage - Collector Emitter Breakdown (Max):
100V
-
Vce Saturation (Max) @ Ib, Ic:
1.3V @ 4mA, 4A
-
Current - Collector Cutoff (Max):
100µA
-
DC Current Gain (hFE) (Min) @ Ic, Vce:
750 @ 3A, 3V
-
Power - Max:
70W
-
Frequency - Transition:
-
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-263-3, D²Pak (2 Leads + Tab), TO-263AB
-
Supplier Device Package:
D2PAK
-
Base Part Number:
2STBN15
-
detail:
Bipolar (BJT) Transistor NPN - Darlington 100V 12A 70W Surface Mount D2PAK
