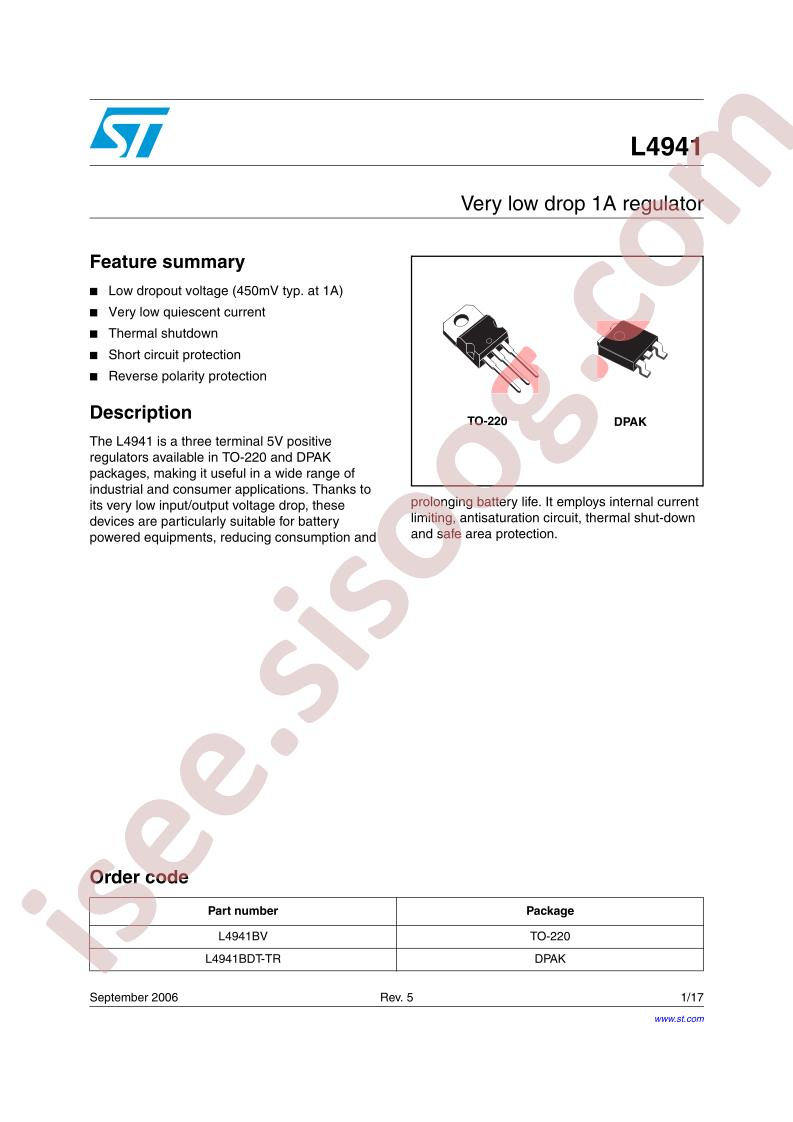

دیتاشیت L4941BDT-TR
مشخصات دیتاشیت
| نام دیتاشیت |
L4941
|
| حجم فایل |
979.103
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
17
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/Linear Voltage Regulators (LDO)
-
Datasheet:
STMicroelectronics L4941BDT-TR
-
Output Type:
Fixed
-
Output Current:
1A
-
Output Voltage:
5V
-
Dropout Voltage:
700mV@(1A)
-
Output Polarity:
Positive
-
Number of Outputs:
1
-
Maximum Input Voltage:
16V
-
Operating Temperature:
-40°C~+150°C
-
Quiescent Current (Ground Current):
8mA
-
Power Supply Rejection Ratio (PSRR):
68dB@(120Hz)
-
Package:
TO-252
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Output Configuration:
Positive
-
Number of Regulators:
1
-
Voltage - Input (Max):
16V
-
Voltage - Output (Min/Fixed):
5V
-
Voltage - Output (Max):
-
-
Voltage Dropout (Max):
0.7V @ 1A
-
Current - Output:
1A
-
Current - Quiescent (Iq):
8mA
-
Current - Supply (Max):
40mA
-
PSRR:
68dB (120Hz)
-
Control Features:
-
-
Protection Features:
Over Temperature, Reverse Polarity, Short Circuit
-
Mounting Type:
Surface Mount
-
Package / Case:
TO-252-3, DPak (2 Leads + Tab), SC-63
-
Supplier Device Package:
DPAK
-
Base Part Number:
L4941
-
detail:
Linear Voltage Regulator IC 1 Output 1A DPAK
