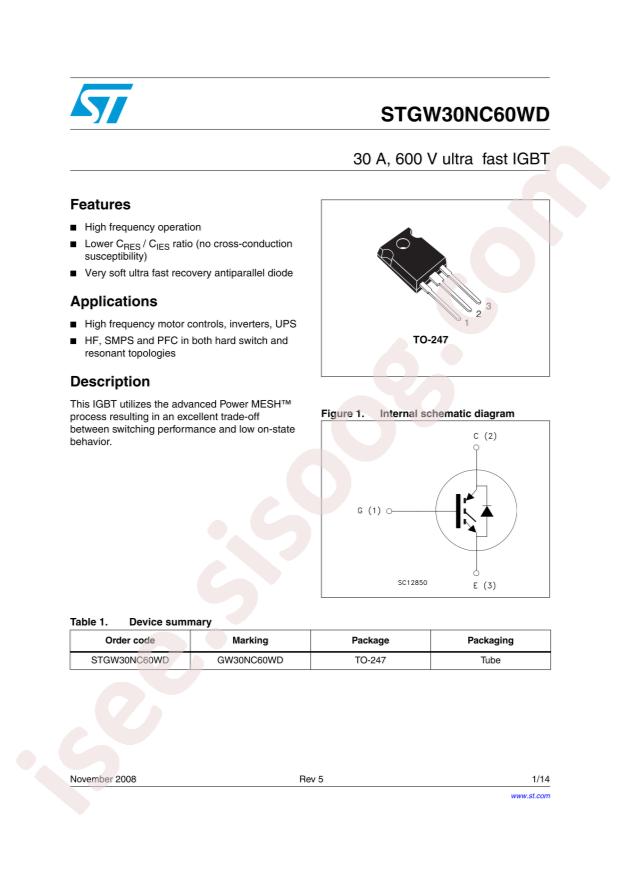

دیتاشیت STGW30NC60WD
مشخصات دیتاشیت
| نام دیتاشیت | STGB,STGP,STGW30NC60W |
|---|---|
| حجم فایل | 476.218 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 16 |
دانلود دیتاشیت STGB,STGP,STGW30NC60W |
STGB,STGP,STGW30NC60W Datasheet |
|---|
مشخصات
- RoHS: true
- Type: -
- Category: Triode/MOS Tube/Transistor/IGBTs
- Datasheet: STMicroelectronics STGW30NC60WD
- Operating Temperature: -55°C~+150°C@(Tj)
- Collector Current (Ic): 60A
- Power Dissipation (Pd): 200W
- Input Capacitance (Cies@Vce): -
- Turn?on Switching Loss (Eon): 0.305mJ
- Pulsed Collector Current (Icm): 150A
- Turn?off Switching Loss (Eoff): 0.181mJ
- Diode Reverse Recovery Time (Trr): 40ns
- Collector-Emitter Breakdown Voltage (Vces): 600V
- Gate-Emitter Threshold Voltage (Vge(th)@Ic): -
- Package: TO-247
- Manufacturer: STMicroelectronics
- Series: PowerMESH™
- Packaging: Tube
- Part Status: Obsolete
- IGBT Type: -
- Voltage - Collector Emitter Breakdown (Max): 600V
- Current - Collector (Ic) (Max): 60A
- Current - Collector Pulsed (Icm): 150A
- Vce(on) (Max) @ Vge, Ic: 2.5V @ 15V, 20A
- Power - Max: 200W
- Switching Energy: 305µJ (on), 181µJ (off)
- Input Type: Standard
- Gate Charge: 102nC
- Td (on/off) @ 25°C: 29.5ns/118ns
- Test Condition: 390V, 20A, 10Ohm, 15V
- Mounting Type: Through Hole
- Package / Case: TO-247-3
- Supplier Device Package: TO-247-3
- Base Part Number: STGW30
- detail: IGBT 600V 60A 200W Through Hole TO-247-3
