دیتاشیت VNI4140K-32

VNI4140K-32 Datasheet

مشخصات دیتاشیت

نام دیتاشیت VNI4140K-32 Datasheet
حجم فایل 1141.68 کیلوبایت
نوع فایل pdf
تعداد صفحات 28

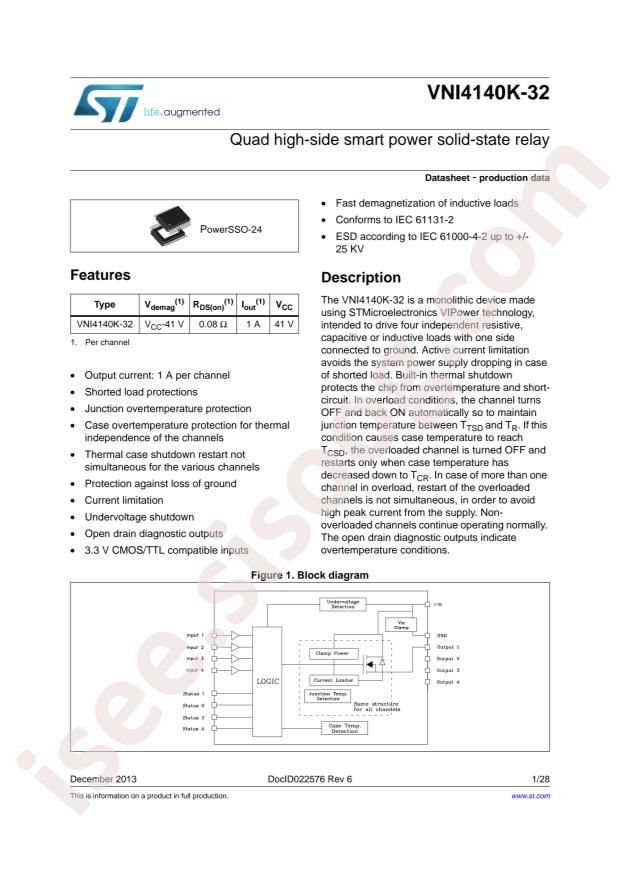

دانلود دیتاشیت VNI4140K-32 Datasheet

VNI4140K-32 Datasheet Datasheet

مشخصات

  • RoHS: true
  • Category: Power Supply Chip/Power Distribution Switches
  • Datasheet: STMicroelectronics VNI4140K-32
  • Package: PowerSSO-24
  • Manufacturer: STMicroelectronics
  • Series: VIPower™
  • Packaging: Tube
  • Part Status: Active
  • Switch Type: General Purpose
  • Number of Outputs: 4
  • Ratio - Input:Output: 1:1
  • Output Configuration: High Side
  • Output Type: N-Channel
  • Interface: On/Off
  • Voltage - Load: 10.5V ~ 36V
  • Voltage - Supply (Vcc/Vdd): Not Required
  • Current - Output (Max): 1A
  • Rds On (Typ): 80mOhm (Max)
  • Input Type: Non-Inverting
  • Features: Status Flag
  • Fault Protection: Current Limiting (Fixed), Over Temperature
  • Operating Temperature: -40°C ~ 125°C (TJ)
  • Mounting Type: Surface Mount
  • Supplier Device Package: PowerSSO-24
  • Package / Case: 24-PowerBSOP (0.295", 7.50mm Width)
  • Base Part Number: VNI4140
  • detail: Power Switch/Driver 1:1 N-Channel 1A PowerSSO-24
