STW20NM60FD دیتاشیت

STW20NM60FD

مشخصات دیتاشیت

نام دیتاشیت STW20NM60FD
حجم فایل 63.721 کیلوبایت
نوع فایل pdf
تعداد صفحات 15

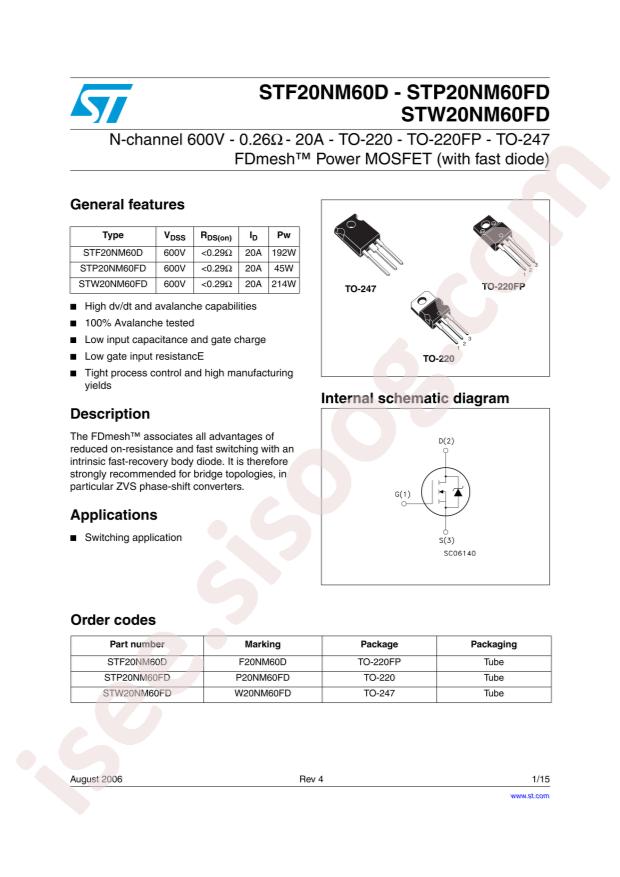

مشاهده دیتاشیت STW20NM60FD

دانلود دیتاشیت

سایر مستندات

مستندات دیگری یافت نشد!

مشخصات فنی

  • RoHS: true
  • Category: Triode/MOS Tube/Transistor/MOSFETs
  • Datasheet: STMicroelectronics STW20NM60FD
  • Operating Temperature: -65°C~+150°C@(Tj)
  • Power Dissipation (Pd): 214W
  • Total Gate Charge (Qg@Vgs): 37nC@10V
  • Input Capacitance (Ciss@Vds): 1300pF@25V
  • Continuous Drain Current (Id): 20A
  • Gate Threshold Voltage (Vgs(th)@Id): 5V@250uA
  • Reverse Transfer Capacitance (Crss@Vds): -
  • Drain Source On Resistance (RDS(on)@Vgs,Id): 290mΩ@10A,10V
  • Package: TO-247
  • Manufacturer: STMicroelectronics
  • Series: FDmesh™
  • Packaging: Tube
  • Part Status: Active
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Drain to Source Voltage (Vdss): 600V
  • Current - Continuous Drain (Id) @ 25°C: 20A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 290mOhm @ 10A, 10V
  • Vgs(th) (Max) @ Id: 5V @ 250µA
  • Gate Charge (Qg) (Max) @ Vgs: 37nC @ 10V
  • Vgs (Max): ±30V
  • Input Capacitance (Ciss) (Max) @ Vds: 1300pF @ 25V
  • FET Feature: -
  • Power Dissipation (Max): 214W (Tc)
  • Mounting Type: Through Hole
  • Supplier Device Package: TO-247-3
  • Package / Case: TO-247-3
  • Base Part Number: STW20N
  • detail: N-Channel 600V 20A (Tc) 214W (Tc) Through Hole TO-247-3
