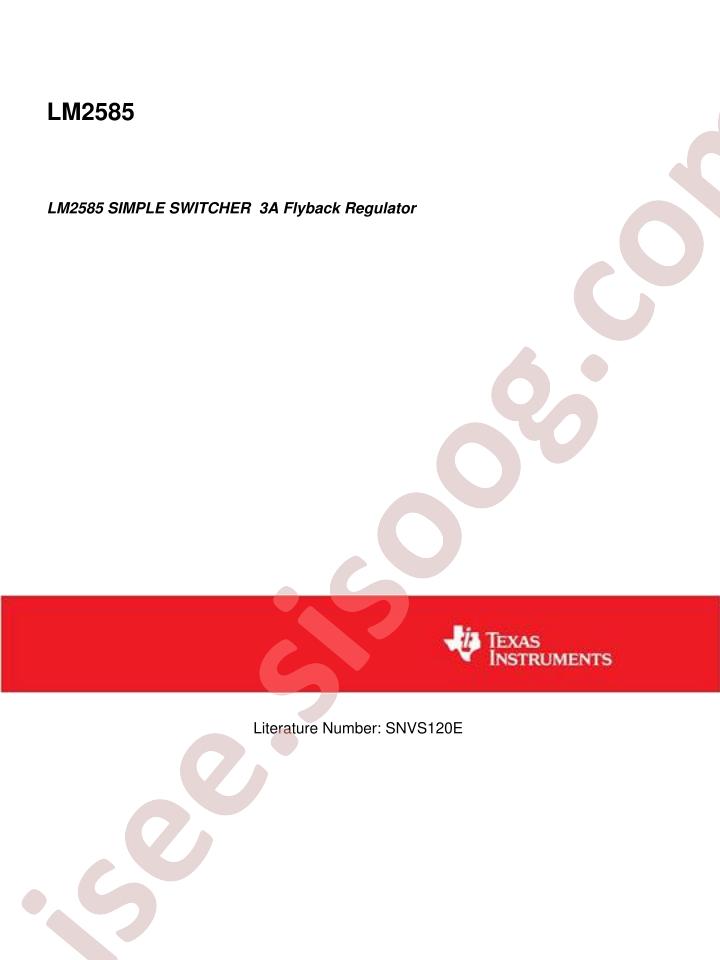

دیتاشیت LM2585T-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت |
LM2585
|
| حجم فایل |
4190.877
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
39
|
مشخصات
-
RoHS:
true
-
Category:
Power Supply Chip/DC-DC Converters
-
Function:
boost converterType;Buck-boost type
-
Topology:
Boost;Flyback
-
Datasheet:
Texas Instruments LM2585T-ADJ/NOPB
-
Output Type:
Adjustable
-
Input Voltage:
4V~40V
-
Output Voltage:
1.23V~60V
-
Number of Outputs:
1
-
Switching Frequency:
100kHz
-
Output Current (Max):
3A
-
Operating Temperature:
-40°C~+125°C@(TJ)
-
Synchronous Rectification:
NO
-

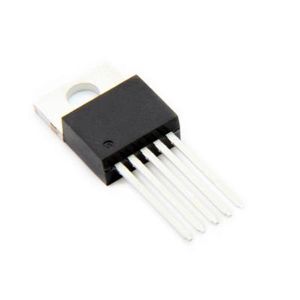

Package:
TO-220-5
-
Manufacturer:
Texas Instruments
-
Series:
SIMPLE SWITCHER®
-
Voltage - Input (Min):
4V
-
Base Part Number:
LM2585
-
Current - Output:
3A (Switch)
-
Frequency - Switching:
100kHz
-
Part Status:
Not For New Designs
-
Voltage - Input (Max):
40V
-
Mounting Type:
Through Hole
-
Supplier Device Package:
TO-220-5
-
Voltage - Output (Min/Fixed):
1.23V
-
Package / Case:
TO-220-5 Formed Leads
-
Voltage - Output (Max):
60V
-
Packaging:
Tube
-
Output Configuration:
Positive
-
Synchronous Rectifier:
No
-
detail:
Boost, Flyback, Forward Converter Switching Regulator IC Positive Adjustable 1.23V 1 Output 3A (Switch) TO-220-5 Formed Leads
