STL8DN10LF3 دیتاشیت

مشخصات دیتاشیت

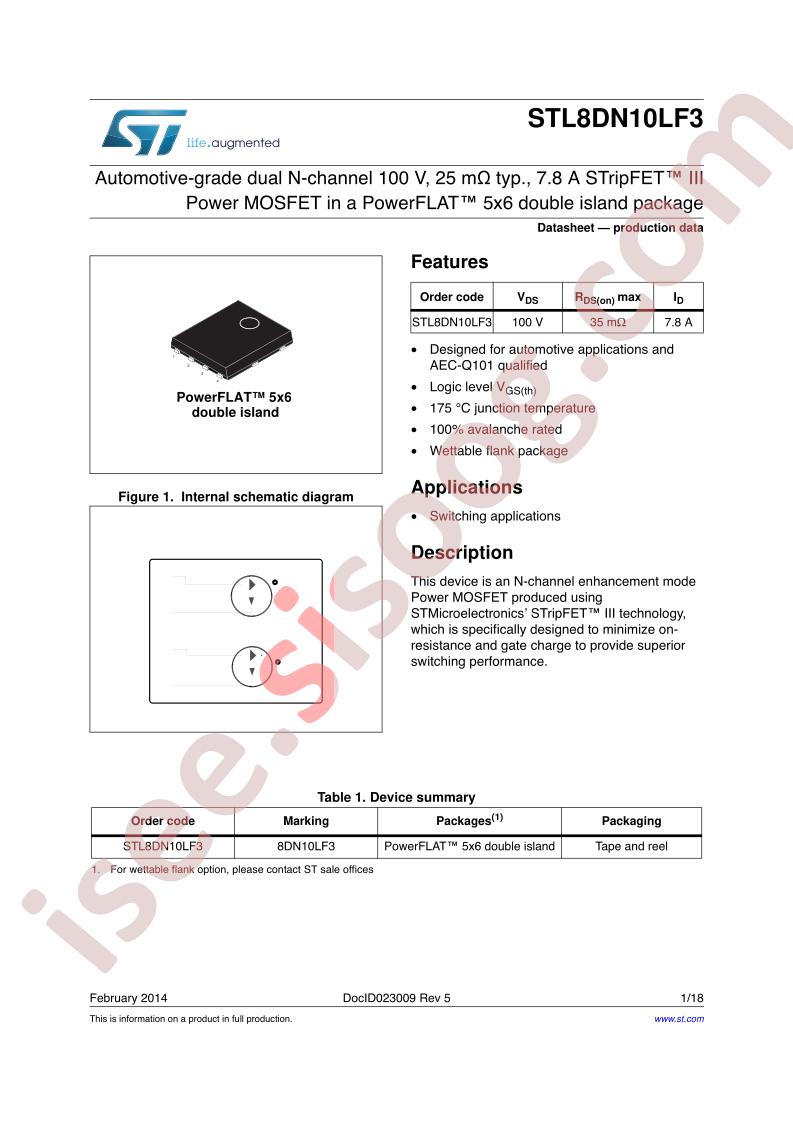

مشاهده دیتاشیت STL8DN10LF3	دانلود دیتاشیت

مستندات دیگری یافت نشد!

Manufacturer: STMicroelectronics
Series: Automotive, AEC-Q101, STripFET™ III
Packaging: Cut Tape (CT)
Part Status: Active
FET Type: 2 N-Channel (Dual)
FET Feature: Logic Level Gate
Drain to Source Voltage (Vdss): 100V
Current - Continuous Drain (Id) @ 25°C: 20A
Rds On (Max) @ Id, Vgs: 35mOhm @ 4A, 10V
Vgs(th) (Max) @ Id: 3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs: 20.5nC @ 10V
Input Capacitance (Ciss) (Max) @ Vds: 970pF @ 25V
Power - Max: 70W
Operating Temperature: -55°C ~ 175°C (TJ)
Mounting Type: Surface Mount
Package / Case: 8-PowerVDFN
Supplier Device Package: PowerFlat™ (5x6)
Base Part Number: STL8
detail: Mosfet Array 2 N-Channel (Dual) 100V 20A 70W Surface Mount PowerFlat™ (5x6)
