دیتاشیت LM2678SX-ADJ/NOPB
مشخصات دیتاشیت
| نام دیتاشیت | LM2678 |
|---|---|
| حجم فایل | 2347.993 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 38 |
دانلود دیتاشیت LM2678 |

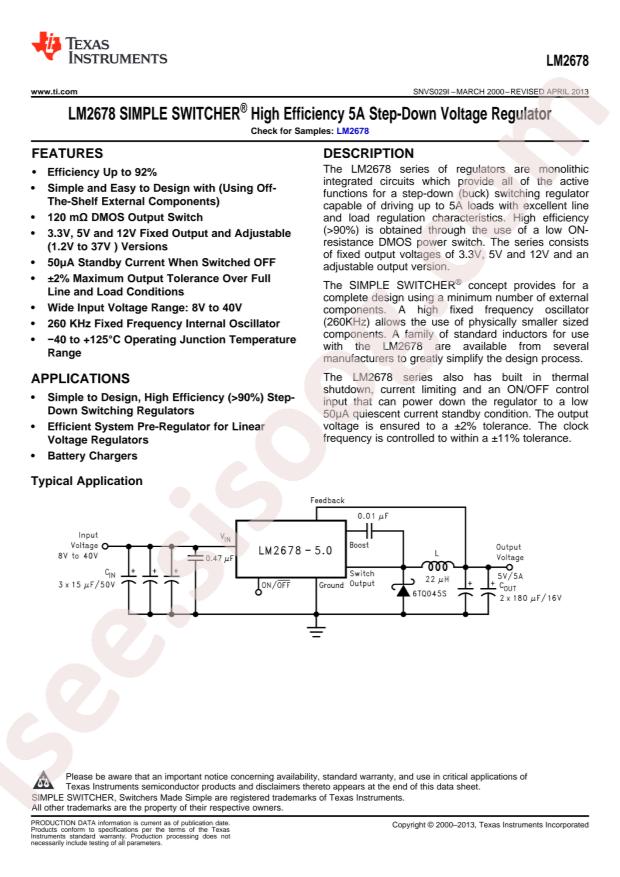

LM2678 Datasheet |
|---|
مشخصات
- Topology: Buck
- Part Status: Active
- Current - Output: 5A
- Package / Case: TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
- Base Part Number: LM2678
- Synchronous Rectifier: No
- Series: SIMPLE SWITCHER®
- Number of Outputs: 1
- Voltage - Input (Min): 8V
- Voltage - Output (Min/Fixed): 1.21V
- Voltage - Output (Max): 37V
- Mounting Type: Surface Mount
- Frequency - Switching: 260kHz
- Manufacturer: Texas Instruments
- Packaging: Cut Tape (CT)
- Function: Step-Down
- Output Type: Adjustable
- Output Configuration: Positive
- Supplier Device Package: DDPAK/TO-263-7
- Operating Temperature: -40°C ~ 125°C (TJ)
- Voltage - Input (Max): 40V
- detail: Buck Switching Regulator IC Positive Adjustable 1.21V 1 Output 5A TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
