LM5143QRWGRQ1 دیتاشیت

مشخصات دیتاشیت

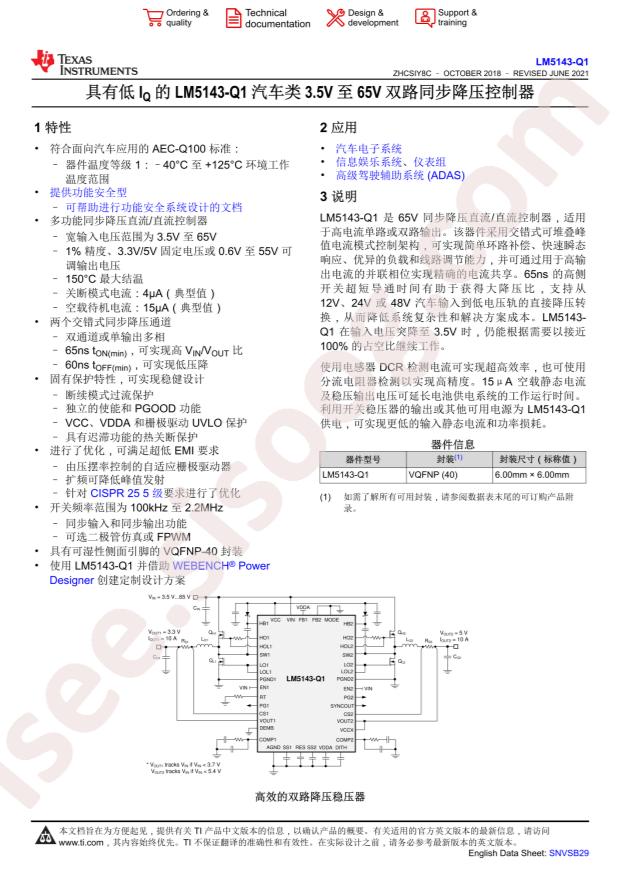

مشاهده دیتاشیت LM5143QRWGRQ1	دانلود دیتاشیت

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Function: Step-down type
Topology: Step-down
Datasheet: Texas Instruments LM5143QRWGRQ1
Input Voltage: 3.5V~65V
Duty Cycle (Max): 100%
Number of Outputs: 2
Switching Frequency: 2.2MHz
Operating Temperature: -40°C~+150°C@(TJ)
Synchronous Rectification: Yes
Package: QFN-40-EP(6x6)
Manufacturer: Texas Instruments
Mounting Type: Surface Mount
Synchronous Rectifier: Yes
Control Features: Current Limit, Dead Time Control, Enable, Frequency Control, Power Good, Soft Start
Packaging: Cut Tape (CT)
Output Phases: 2
Clock Sync: Yes
Output Type: Transistor Driver
Supplier Device Package: 40-VQFNP (6x6)
Part Status: Active
Package / Case: 40-VFQFN Exposed Pad
Serial Interfaces: -
Voltage - Supply (Vcc/Vdd): 3.5V ~ 65V
Frequency - Switching: 100kHz ~ 2.2MHz
Base Part Number: LM5143
Series: Automotive, AEC-Q100
Output Configuration: Positive
detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 40-VQFNP (6x6)
