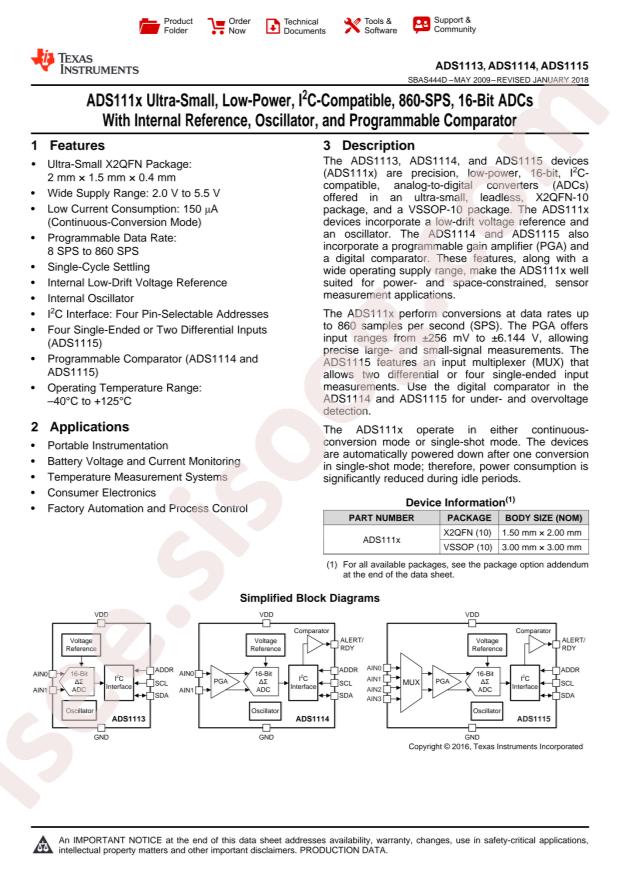

ADS1114IDGST 数据手册
其他文档
Analog Signal Chain Guide 11 pages
ADS1113 - ADS1115 Datasheet 54 pages
Connected Sensors Building Automation Systems Guide 13 pages
技术规格
- RoHS: true
- Category: ADC/DAC/Data Conversion/Analog To Digital Converters (ADCs)
- Datasheet: Texas Instruments ADS1114IDGST
- Package: MSOP-10
- Manufacturer: Texas Instruments
- Mounting Type: Surface Mount
- Voltage - Supply, Digital: 2V ~ 5.5V
- Input Type: Differential, Single Ended
- Architecture: Sigma-Delta
- Packaging: Cut Tape (CT)
- Number of Bits: 16
- Data Interface: I²C
- Number of Inputs: 1, 2
- Supplier Device Package: 10-VSSOP
- Operating Temperature: -40°C ~ 125°C
- Ratio - S/H:ADC: -
- Sampling Rate (Per Second): 860
- Number of A/D Converters: 1
- Part Status: Active
- Package / Case: 10-TFSOP, 10-MSOP (0.118", 3.00mm Width)
- Voltage - Supply, Analog: 2V ~ 5.5V
- Reference Type: Internal
- Base Part Number: ADS1114
- Series: -
- Features: PGA, Selectable Address
- Configuration: PGA-ADC
- detail: 16 Bit Analog to Digital Converter 1, 2 Input 1 Sigma-Delta 10-VSSOP
