LM5119PSQE/NOPB دیتاشیت

مشخصات دیتاشیت

مشاهده دیتاشیت LM5119PSQE/NOPB	دانلود دیتاشیت

LM5119 44 pages

RoHS: true
Category: Power Supply Chip/DC-DC Controllers
Datasheet: Texas Instruments LM5119PSQE/NOPB

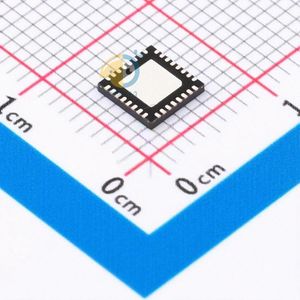

Package: QFN-32-EP(5x5)
Manufacturer: Texas Instruments
Mounting Type: Surface Mount
Synchronous Rectifier: Yes
Control Features: Enable, Frequency Control, Ramp, Soft Start
Packaging: Cut Tape (CT)
Output Phases: 2
Clock Sync: No
Function: Step-Down
Output Type: Transistor Driver
Supplier Device Package: 32-WQFN (5x5)
Operating Temperature: -40°C ~ 125°C (TJ)
Topology: Buck
Part Status: Active
Package / Case: 32-WFQFN Exposed Pad
Number of Outputs: 2
Serial Interfaces: -
Voltage - Supply (Vcc/Vdd): 5.5V ~ 65V
Frequency - Switching: 50kHz ~ 750kHz
Base Part Number: LM5119
Duty Cycle (Max): -
Series: -
Output Configuration: Positive
detail: Buck Regulator Positive Output Step-Down DC-DC Controller IC 32-WQFN (5x5)
