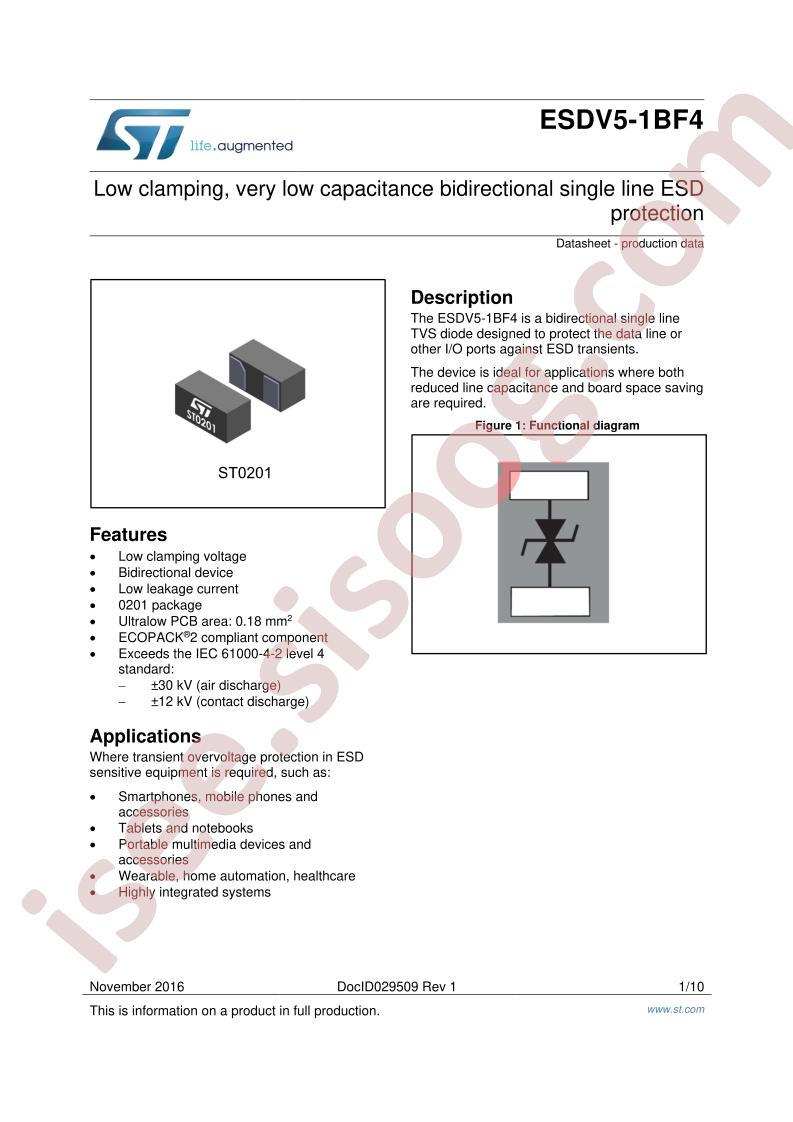

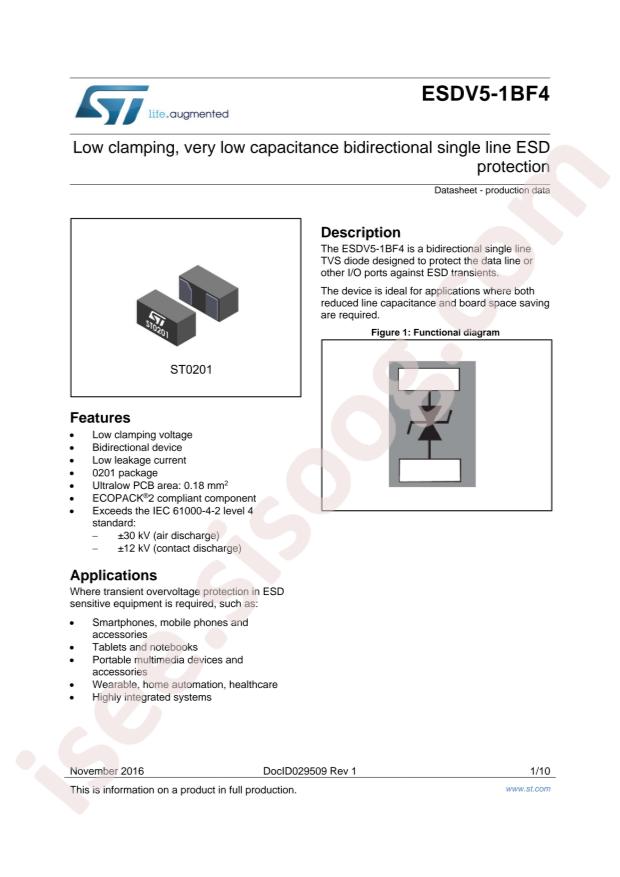

دیتاشیت ESDV5-1BF4
مشخصات دیتاشیت
| نام دیتاشیت |
ESDV5-1BF4
|
| حجم فایل |
552.509
کیلوبایت
|
| نوع فایل |
pdf
|
| تعداد صفحات |
10
|
مشخصات
-
RoHS:
true
-
Category:
TVS/Fuse/Board Level Protection/ESD Protection Devices
-
Datasheet:
STMicroelectronics ESDV5-1BF4
-
Clamping Voltage@Ipp:
16.3V
-
Operating Temperature:
-55°C~+150°C@(Tj)
-
Breakdown Voltage (VBR):
8.5V
-
Peak Pulse Power(Ppp)@8/20us:
20W
-
Junction Capacitance(Cj)@1MHz:
7pF@1MHz
-
Peak Pulse Current(Ipp)@8/20us:
1.7A
-
Reverse Stand-Off Voltage (Vrwm):
5.5V
-
Package:
-
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Cut Tape (CT)
-
Part Status:
Active
-
Type:
Zener
-
Bidirectional Channels:
1
-
Voltage - Reverse Standoff (Typ):
5.5V
-
Voltage - Breakdown (Min):
8.5V
-
Voltage - Clamping (Max) @ Ipp:
16.3V
-
Current - Peak Pulse (10/1000µs):
1.7A
-
Power - Peak Pulse:
20W
-
Power Line Protection:
No
-
Applications:
General Purpose
-
Capacitance @ Frequency:
7pF @ 1MHz
-
Mounting Type:
Surface Mount
-
Package / Case:
0201 (0603 Metric)
-
Supplier Device Package:
ST0201
-
Base Part Number:
ESDV5
-
detail:
16.3V Clamp 1.7A Ipp Tvs Diode Surface Mount ST0201
