VN7010AJTR دیتاشیت
مشخصات دیتاشیت
| نام دیتاشیت | VN7010AJTR |
|---|---|
| حجم فایل | 90.406 کیلوبایت |
| نوع فایل | |
| تعداد صفحات | 45 |
دانلود دیتاشیت VN7010AJTR |
دانلود دیتاشیت |
|---|
سایر مستندات

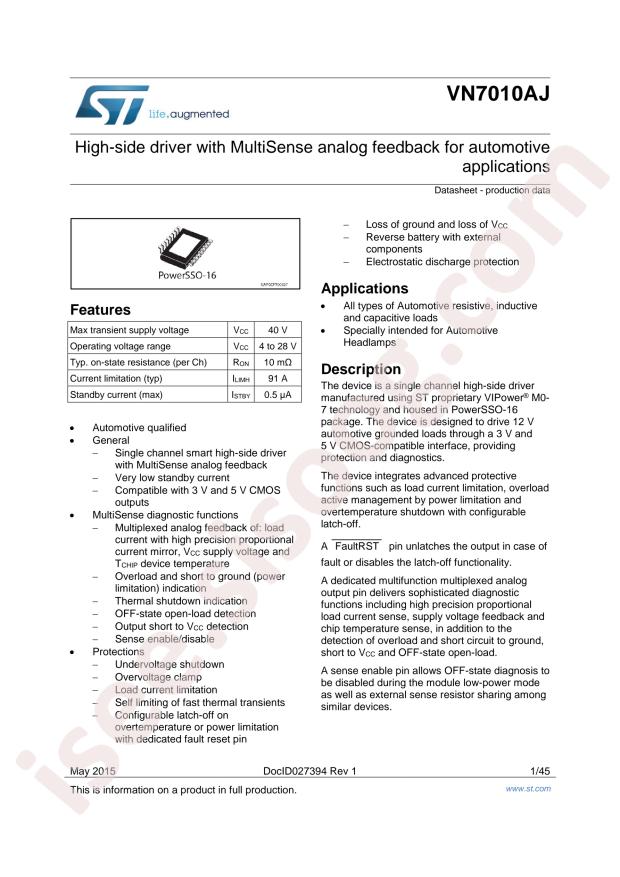

VN7010AJ Datasheet 45 pages
مشخصات فنی
- RoHS: true
- Category: Power Supply Chip/Power Distribution Switches
- Datasheet: STMicroelectronics VN7010AJTR
- Input Voltage: 4V~28V
- Output Current: 65A
- Number of Outputs: 1
- Resistor On-State: 10mΩ
- Operating Temperature -: -40°C~+150°C
- Package: PowerSSO-16
- Manufacturer: STMicroelectronics
- Series: VIPower™
- Packaging: Cut Tape (CT)
- Part Status: Active
- Switch Type: General Purpose
- Ratio - Input:Output: 1:1
- Output Configuration: High Side
- Output Type: N-Channel
- Interface: On/Off
- Voltage - Load: 4V ~ 28V
- Voltage - Supply (Vcc/Vdd): Not Required
- Current - Output (Max): 65A
- Rds On (Typ): 10mOhm
- Input Type: Non-Inverting
- Features: Auto Restart, Status Flag
- Fault Protection: Current Limiting (Fixed), Open Load Detect, Over Temperature, Over Voltage, UVLO
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Surface Mount
- Supplier Device Package: PowerSSO-16
- Package / Case: 16-PowerLFSOP (0.154", 3.90mm Width)
- Base Part Number: VN7010
- detail: Power Switch/Driver 1:1 N-Channel 65A PowerSSO-16
