- T1620T-8I, T1635T-8I

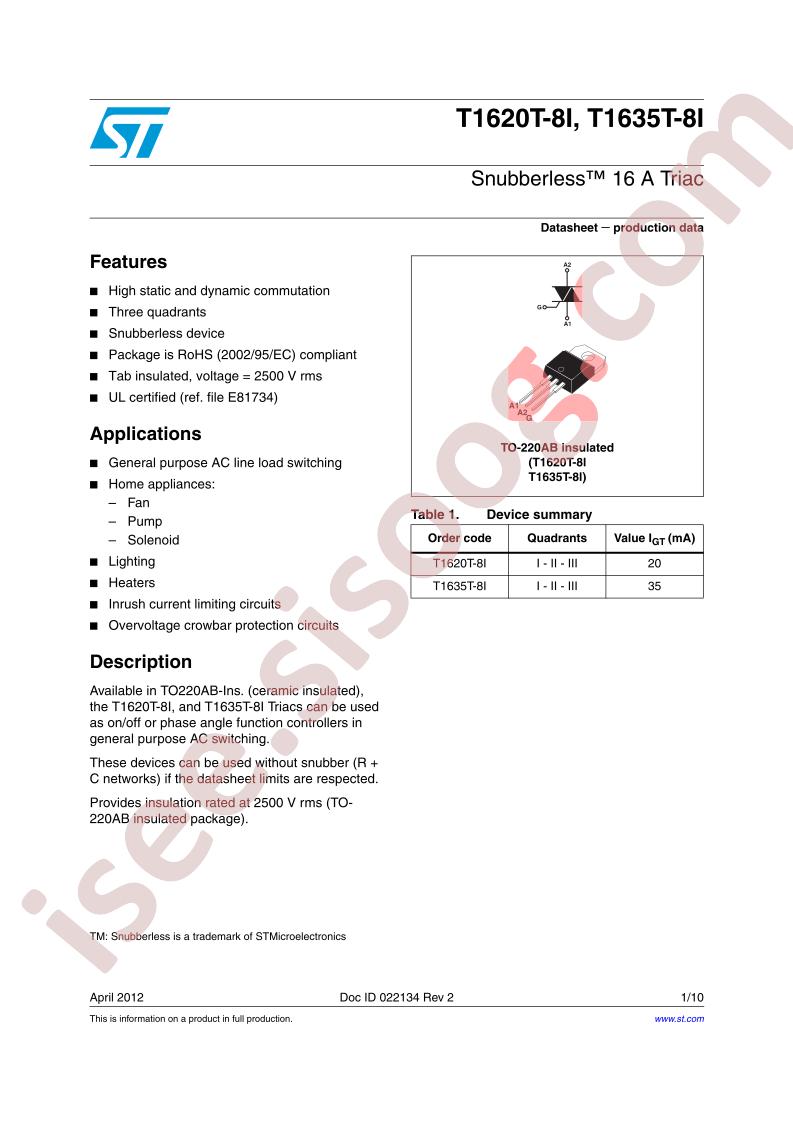

T1620T-8I Datasheet
Datasheet specifications
| Datasheet's name | T1620T-8I, T1635T-8I |
|---|---|
| File size | 174.201 KB |
| File type | |
| Number of pages | 10 |
Download Datasheet T1620T-8I, T1635T-8I |
Download Datasheet |
|---|
Other documentations
No other documentation was found!
Technical specifications
- Manufacturer: STMicroelectronics
- Series: Snubberless™
- Packaging: Tube
- Part Status: Active
- Triac Type: Alternistor - Snubberless
- Voltage - Off State: 800V
- Current - On State (It (RMS)) (Max): 16A
- Voltage - Gate Trigger (Vgt) (Max): 1.3V
- Current - Non Rep. Surge 50, 60Hz (Itsm): 120A, 126A
- Current - Gate Trigger (Igt) (Max): 20mA
- Current - Hold (Ih) (Max): 25mA
- Configuration: Single
- Operating Temperature: -40°C ~ 150°C (TJ)
- Mounting Type: Through Hole
- Package / Case: TO-220-3
- Supplier Device Package: TO-220AB
- Base Part Number: T1620
- detail: TRIAC Alternistor - Snubberless 800V 16A Through Hole TO-220AB
