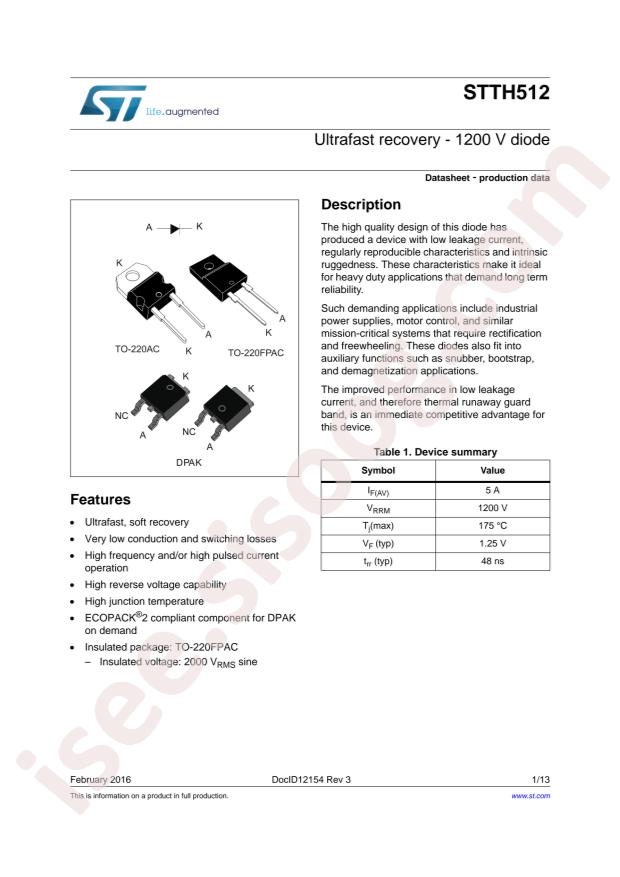

STTH512D دیتاشیت
مشخصات دیتاشیت
|
نام دیتاشیت
|
STTH512D
|
|
حجم فایل
|
60.776
کیلوبایت
|
|
نوع فایل
|
pdf
|
|
تعداد صفحات
|
13
|
مشخصات فنی
-
RoHS:
true
-
Category:
Diodes/Diodes - Fast Recovery Rectifiers
-
Datasheet:
STMicroelectronics STTH512D
-
Diode Configuration:
Single
-
Reverse Voltage (Vr):
1.2kV
-
Operating Temperature:
+175°C@(Tj)
-
Forward Voltage (Vf@If):
2.2V@5A
-
Reverse Leakage Current:
5uA@1.2kV
-
Reverse Recovery Time (trr):
48ns
-
Average Rectified Current (Io):
5A
-
Package:
ITO-220AC
-
Manufacturer:
STMicroelectronics
-
Series:
-
-
Packaging:
Tube
-
Part Status:
Active
-
Diode Type:
Standard
-
Voltage - DC Reverse (Vr) (Max):
1200V
-
Current - Average Rectified (Io):
5A
-
Voltage - Forward (Vf) (Max) @ If:
2.2V @ 5A
-
Speed:
Fast Recovery =< 500ns, > 200mA (Io)
-
Current - Reverse Leakage @ Vr:
5µA @ 1200V
-
Capacitance @ Vr, F:
-
-
Mounting Type:
Through Hole
-
Package / Case:
TO-220-2
-
Supplier Device Package:
TO-220AC
-
Operating Temperature - Junction:
175°C (Max)
-
Base Part Number:
STTH512
-
detail:
Diode Standard 1200V 5A Through Hole TO-220AC
