REF3225AIDBVT Datasheet
Datasheet specifications
| Datasheet's name | REF3225AIDBVT |
|---|---|
| File size | 71.591 KB |
| File type | |
| Number of pages | 19 |
Download Datasheet REF3225AIDBVT |
Download Datasheet |
|---|
Other documentations
REF3212/20/25/30/33/40 22 pages
Technical specifications
- RoHS: true
- Category: Power Supply Chip/Voltage References
- Datasheet: Texas Instruments REF3225AIDBVT
- Tolerance: ±0.2%
- Output Type: Fixed
- Input Voltage: 2.55V~5.5V
- Output Current: 10mA
- Output Voltage: 2.5V
- Reference Type: series connection
- Supply Current: 135uA
- Noise - 10Hz to 10kHz: 48uVrms
- Operating Temperature: -40°C~+125°C@(Ta)
- Temperature Coefficient: 20ppm/°C

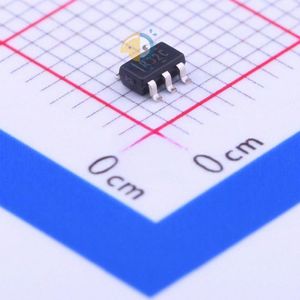

- Package: SOT-23-6
- Manufacturer: Texas Instruments
- Part Status: Not For New Designs
- Current - Supply: 135µA
- Current - Output: 10mA
- Series: -
- Package / Case: SOT-23-6
- Voltage - Output (Min/Fixed): 2.5V
- Base Part Number: REF322
- Mounting Type: Surface Mount
- Noise - 0.1Hz to 10Hz: 33µVp-p
- Voltage - Input: 2.55V ~ 5.5V
- Packaging: Cut Tape (CT)
- Supplier Device Package: SOT-23-6
- detail: Series Voltage Reference IC ±0.2% SOT-23-6
