TPS54361DPRT دیتاشیت

مشخصات دیتاشیت

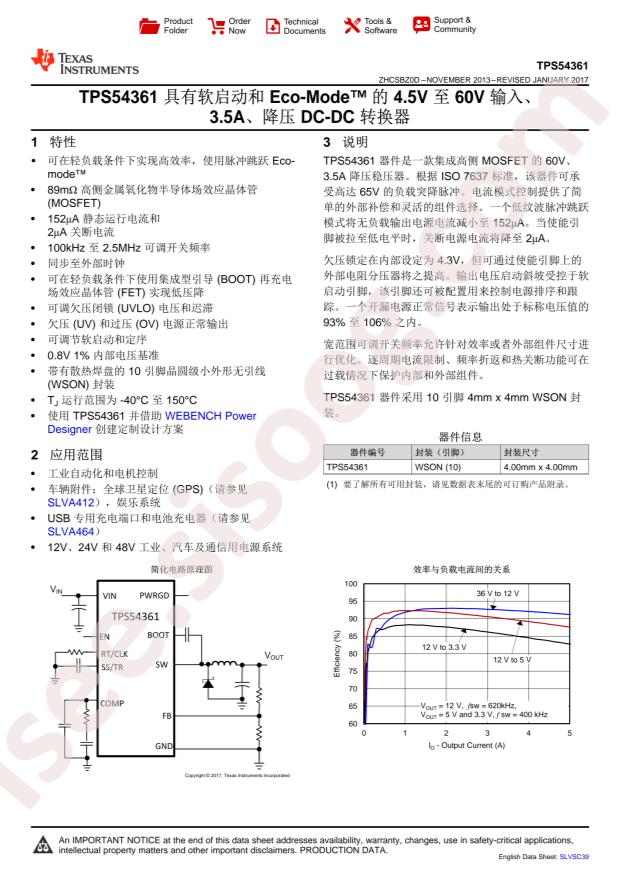

مشاهده دیتاشیت TPS54361DPRT	دانلود دیتاشیت

TPS54361 52 pages

RoHS: true
Category: Power Supply Chip/DC-DC Converters
Datasheet: Texas Instruments TPS54361DPRT
Package: DFN-10(4x4)
Manufacturer: Texas Instruments
Topology: Buck, Split Rail
Part Status: Active
Current - Output: 3.5A
Package / Case: 10-WDFN Exposed Pad
Base Part Number: TPS543
Synchronous Rectifier: No
Series: Eco-Mode™
Number of Outputs: 1
Voltage - Input (Min): 4.5V
Voltage - Output (Min/Fixed): 0.8V
Voltage - Output (Max): 60V
Mounting Type: Surface Mount
Frequency - Switching: 100kHz ~ 2.5MHz
Packaging: Cut Tape (CT)
Function: Step-Down
Output Type: Adjustable
Output Configuration: Positive
Supplier Device Package: 10-WSON (4x4)
Operating Temperature: -40°C ~ 85°C (TA)
Voltage - Input (Max): 60V
detail: Buck, Split Rail Switching Regulator IC Positive Adjustable 0.8V 1 Output 3.5A 10-WDFN Exposed Pad
