STTH100W04CW دیتاشیت

مشخصات دیتاشیت

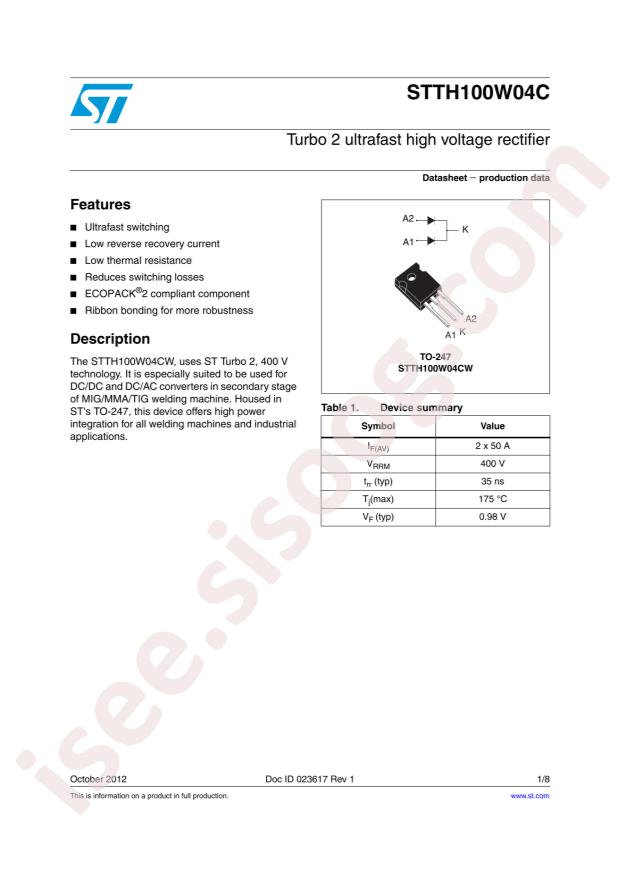

مشاهده دیتاشیت STTH100W04CW	دانلود دیتاشیت

RoHS: true
Category: Diodes/Diodes - Fast Recovery Rectifiers
Datasheet: STMicroelectronics STTH100W04CW
Diode Configuration: Dual Common Cathode
Reverse Voltage (Vr): 400V
Operating Temperature: +175°C@(Tj)
Forward Voltage (Vf@If): 1.45V@50A
Reverse Leakage Current: 25uA@400V
Reverse Recovery Time (trr): 35ns
Average Rectified Current (Io): 50A

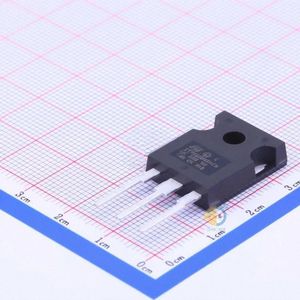

Package: TO-247
Manufacturer: STMicroelectronics
Series: -
Packaging: Tube
Part Status: Active
Diode Type: Standard
Voltage - DC Reverse (Vr) (Max): 400V
Current - Average Rectified (Io) (per Diode): 50A
Voltage - Forward (Vf) (Max) @ If: 1.45V @ 50A
Speed: Fast Recovery =< 500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr: 25µA @ 400V
Operating Temperature - Junction: 175°C (Max)
Mounting Type: Through Hole
Package / Case: TO-247-3
Supplier Device Package: TO-247
Base Part Number: STTH10
detail: Diode Array 1 Pair Common Cathode Standard 400V 50A Through Hole TO-247-3
