دیتاشیت 1.5KE68CA

1.5KE68CA

مشخصات دیتاشیت

نام دیتاشیت 1.5KE68CA
حجم فایل 68.14 کیلوبایت
نوع فایل pdf
تعداد صفحات 7

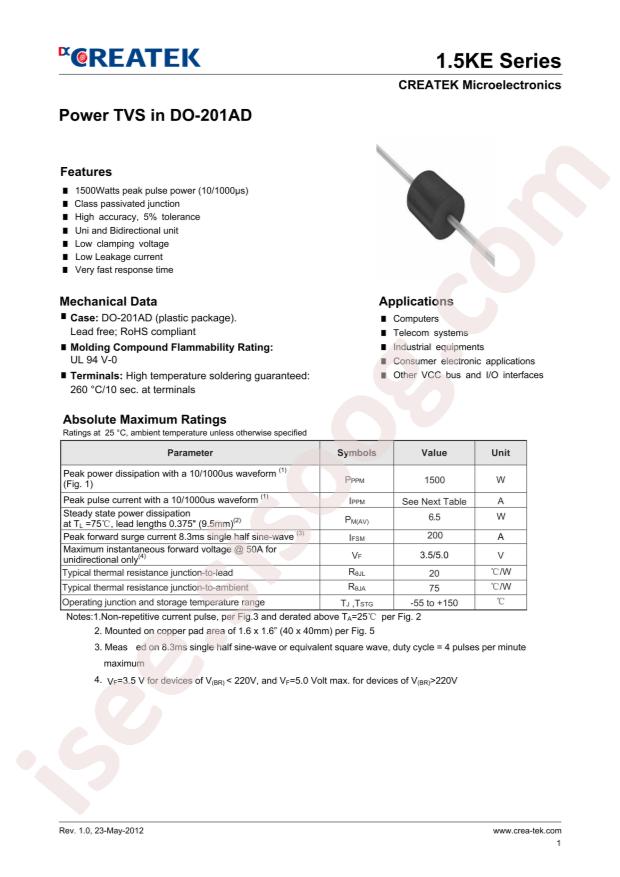

1.5KE68CA

دانلود دیتاشیت

سایر مستندات

1.5KE 10 pages

1.5KE36A 4 pages

1.5KE36A 10 pages

1.5KE36A 6 pages

1.5KE8.2A 6 pages

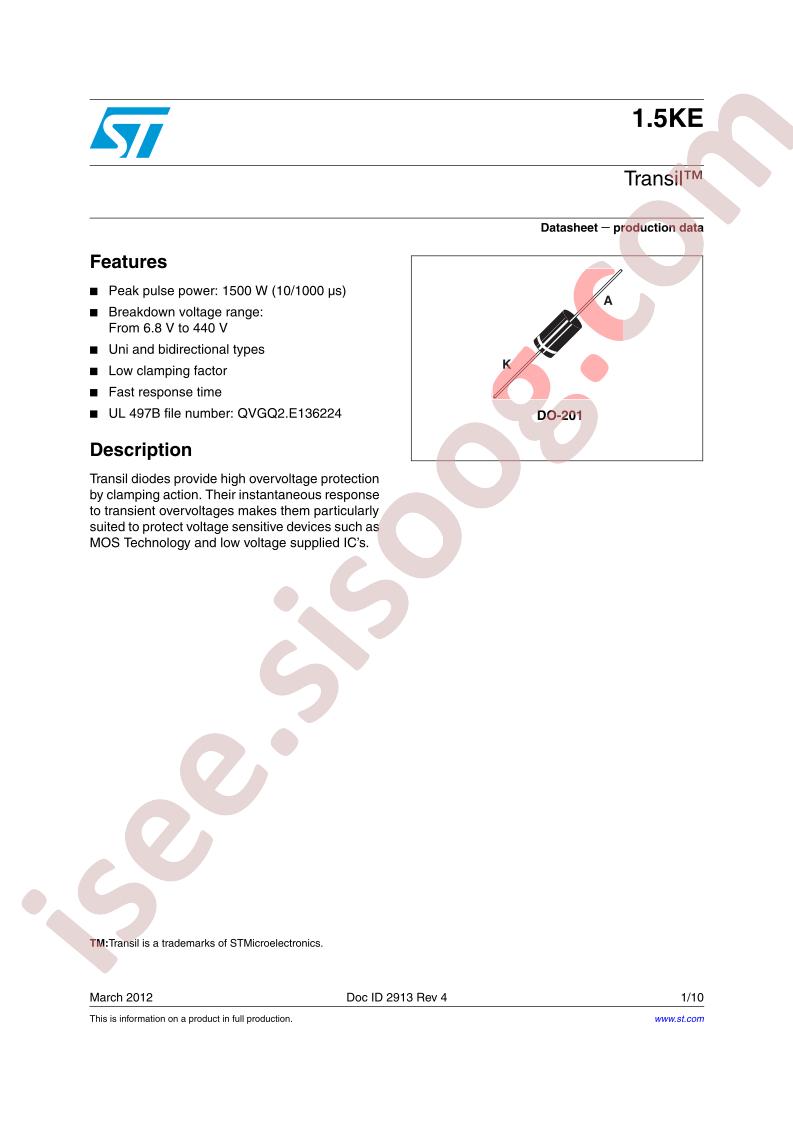

1.5KE Datasheet 10 pages

مشخصات فنی

  • RoHS: true
  • Category: TVS/Fuse/Board Level Protection/TVS
  • Datasheet: DOWO 1.5KE68CA
  • Breakdown Voltage: 64.6V
  • Maximum Clamping Voltage: 92V
  • Reverse Stand-Off Voltage (Vrwm): 58.1V
  • Peak Pulse Current (Ipp)@10/1000us: 16.3A
  • Package: DO-201
  • Manufacturer: DOWO
  • Reverse Leakage Current (Ir): 1uA
  • Peak Pulse Current (Ipp)@10/1000μs: 16.3A
  • Bidirectional Channels: 1
  • Peak Pulse Power Dissipation (Ppp)@10/1000us: 1.5kW
  • Series: 1.5KE, TRANSIL™
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Type: Zener
  • Voltage - Reverse Standoff (Typ): 58.1V
  • Voltage - Breakdown (Min): 64.6V
  • Voltage - Clamping (Max) @ Ipp: 121V
  • Current - Peak Pulse (10/1000µs): 83A (8/20µs)
  • Power - Peak Pulse: 1500W (1.5kW)
  • Power Line Protection: No
  • Applications: General Purpose
  • Capacitance @ Frequency: 775pF @ 1MHz
  • Operating Temperature: -
  • Mounting Type: Through Hole
  • Package / Case: DO-201AA, DO-27, Axial
  • Supplier Device Package: DO-201
  • Base Part Number: 1.5KE
  • detail: 121V Clamp 83A (8/20µs) Ipp Tvs Diode Through Hole DO-201
