STPS5H100-Y دیتاشیت

STPS5H100-Y

مشخصات دیتاشیت

نام دیتاشیت STPS5H100-Y
حجم فایل 195.464 کیلوبایت
نوع فایل pdf
تعداد صفحات 9

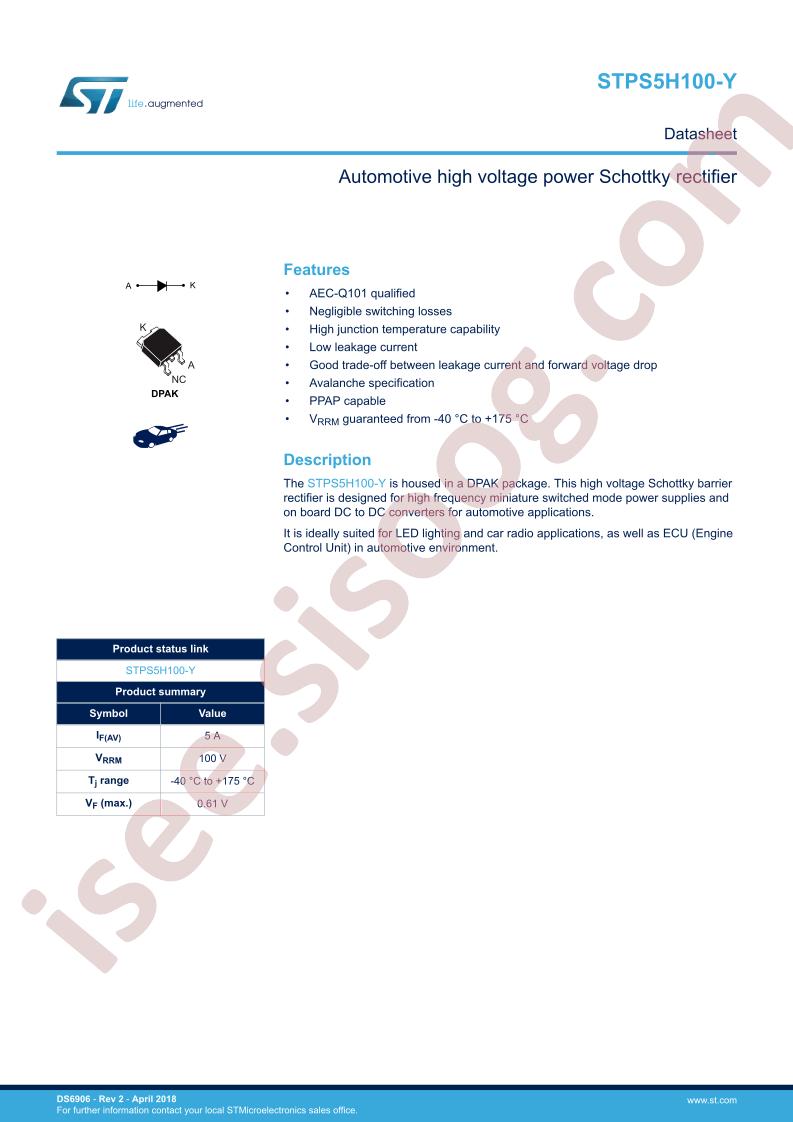

مشاهده دیتاشیت STPS5H100-Y

دانلود دیتاشیت

سایر مستندات

STPS5H100BY-TR 9 pages

مشخصات فنی

  • RoHS: true
  • Category: Diodes/Schottky Barrier Diodes (SBD)
  • Datasheet: STMicroelectronics STPS5H100BY-TR
  • Diode Configuration: Single
  • Reverse Voltage (Vr): 100V
  • Forward Voltage (Vf@If): 850mV@10A
  • Reverse Leakage Current (Ir): 3.5uA@100V
  • Average Rectified Current (Io): 5A
  • Package: TO-252
  • Manufacturer: STMicroelectronics
  • Series: Automotive, AEC-Q101
  • Packaging: Cut Tape (CT)
  • Part Status: Active
  • Diode Type: Schottky
  • Voltage - DC Reverse (Vr) (Max): 100V
  • Current - Average Rectified (Io): 5A
  • Voltage - Forward (Vf) (Max) @ If: 730mV @ 5A
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Current - Reverse Leakage @ Vr: 3.5µA @ 100V
  • Capacitance @ Vr, F: -
  • Mounting Type: Surface Mount
  • Package / Case: TO-252-3, DPak (2 Leads + Tab), SC-63
  • Supplier Device Package: DPAK
  • Operating Temperature - Junction: -40°C ~ 175°C
  • Base Part Number: STPS5
  • detail: Diode Schottky 100V 5A Surface Mount DPAK
